How To Install A Toilet




We recommend consulting a professional if you are unfamiliar with installing bathroom fixtures and/or plumbing.
For the following installation instructions for your new toilet it is assumed that any old fixtures have been removed and any repairs to the water supply and/or toilet flange have been completed.


Tools and Materials:
Adjustable Wrench
Adjustable Wrench
Shim
Shim
Level
Level
Hacksaw
Hacksaw
Latex Caulk
Latex Caulk
Tile Grout
Tile Grout

   Step 1

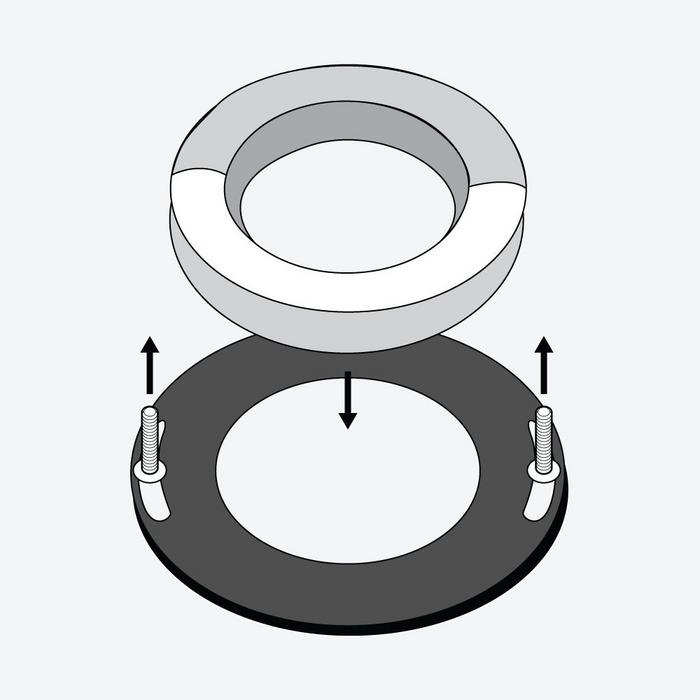

  Wax ring Press the new wax ring into place on the toilet flange on the floor with the flat side down and the tapered edge up. Apply enough pressure to hold the ring in place during installation but be careful not to press it out of shape.

   Step 2
  Install the anchor bolts through the toilet flange. Install the anchor bolts through the toilet flange. The anchor bolts should be pointing upwards so that when the toilet is placed the bolts will project through the mounting holes on the base of the toilet.

   Step 3
  When the wax ring and bolts are attached lift the toilet and align the mounting holes with the anchor bolts on the floor for proper placement. When the wax ring and bolts are attached lift the toilet and align the mounting holes with the anchor bolts on the floor for proper placement.

   Step 4
  Set the toilet down on the floor and press in place to form a tight seal with the wax ring. Set the toilet down on the floor and press in place to form a tight seal with the wax ring. Do not move the toilet after placement this could break the watertight seal and cause leakage.

   Step 5

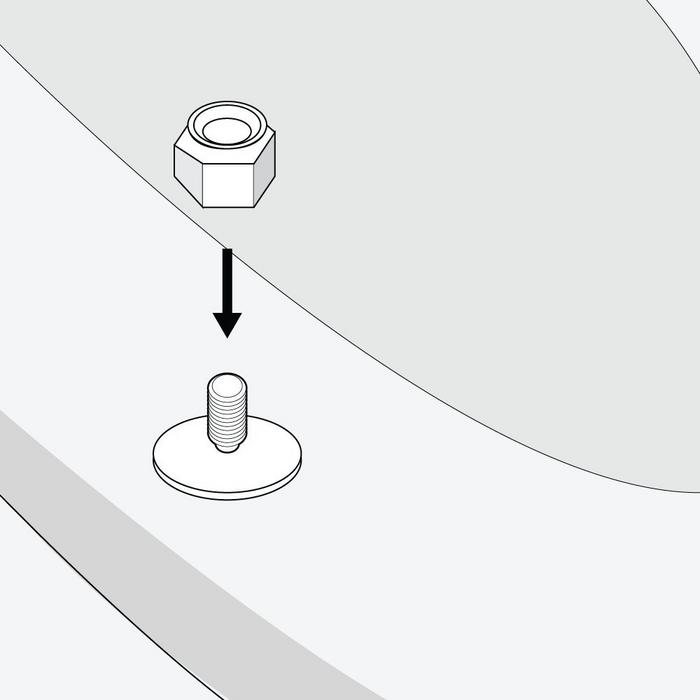

  Thread the washers and nuts onto the anchor bolts. Thread the washers and nuts onto the anchor bolts.

Installation Tip: Before tightening washers and nuts verify that your toilet is level. If the toilet is not level place a shim under the base of the toilet and adjust as necessary.

   Step 6
  Tighten the washers and nuts onto the anchor bolts with your adjustable wrench. When toilet is properly aligned finish tightening the washers and nuts onto the anchor bolts with your adjustable wrench. Do this gradually alternating from one bolt to the other until both are tight. Be sure not to overtighten as this could cause cracks and damage the base of your toilet.

   Step 7
  Place bolt caps over the anchor bolts on the base of the toilet. Place bolt caps over the anchor bolts on the base of the toilet.

Installation Tip: If the anchor bolts extend too far over the top of the washers and nuts use a hacksaw to trim to the correct length.

   Step 8

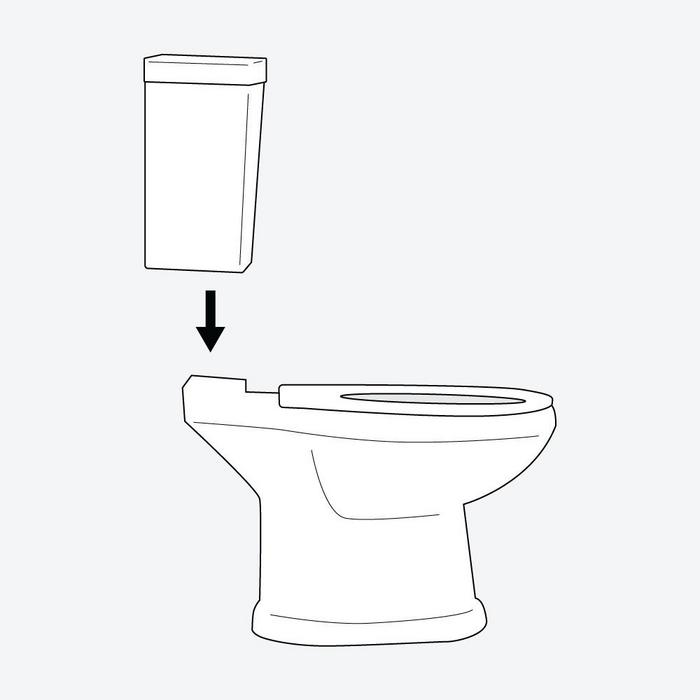

  Lower tank onto the toilet base. If you are installing a two piece toilet slide the tank bolts through the mounting holes on the top of the base of the toilet. If your toilet has only one piece move on to step 9.

   Step 9

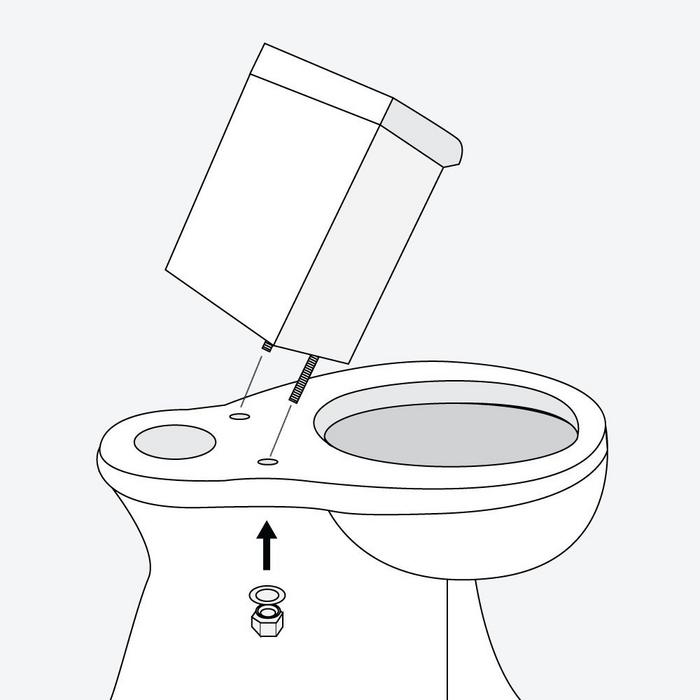

  Lower tank onto the toilet base. Thread washers and nuts onto the tank bolts. Verify that the tank is level and alternately tighten the washers and nuts until the tank is resting firmly on the bowl.

   Step 10
  Toilet water supply Connect the water supply tubes at the bottom of the tank. Turn on the water supply and flush the toilet several times to check for any leaks around the back or base.

   Step 11

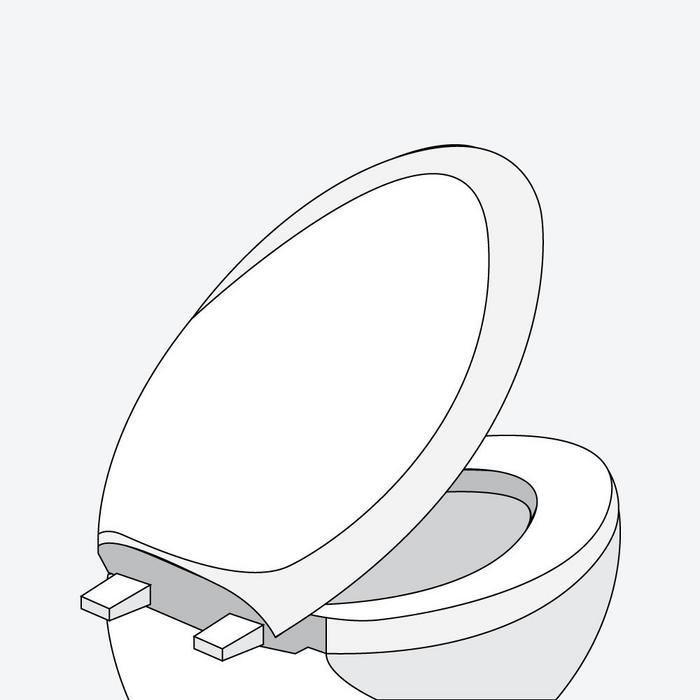

  Attach the toilet seat by placing it on top of the bowl and securing it in place with supplied bolts. Attach the toilet seat by placing it on top of the bowl and securing it in place with supplied bolts.

   Step 12

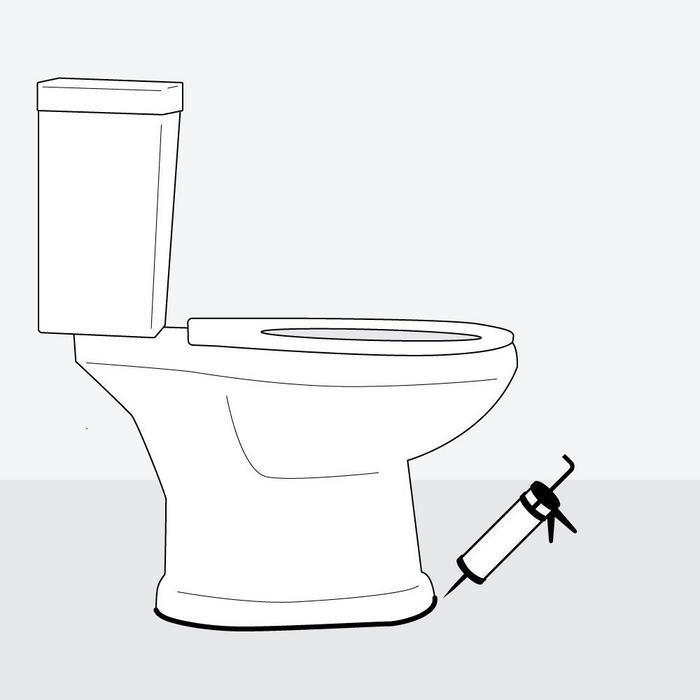

  Finish your installation by applying latex caulk or tile grout around the base of the toilet. Finish your installation by applying latex caulk or tile grout around the base of the toilet. This will finish the joint between your floor and toilet bowl and divert water away from the base of the toilet.
