Hibiscus Thermostatic Shower System - Dual Showerheads, Slide Bar and Hand Shower - Chrome

484704 SIG484704
3.6 out of 5 Customer Rating

Hibiscus Thermostatic Shower System - Dual Showerheads, Slide Bar and Hand Shower - Chrome

484704 SIG484704
3.6 out of 5 Customer Rating
Chrome Select an Option
Select an Option Chrome Select an Option
Select an Option Chrome Select an Option

As Selected

$2,08130
Free Shipping
We’re sorry! This product or combination is out of stock. Please shop our in-stock selections below. If you have questions, please contact customer service at 855-715-1800 or support@signaturehardware.com
You’ve reached the maximum quantity available


Create a spa-like retreat for two with the Hibiscus Thermostatic Shower System with Dual Showerheads, Slide Bar and Hand Shower. Dual shower heads keep both bathers below a luxurious rainfall, featuring thermostatic technology that ensures your desired water temperature remains consistent throughout use. The convenient hand shower features a vertical slide bar, allowing height to be adjusted with ease when you prefer a more direct stream. Modern in both functionality and style, this system is comprised of clean, angular silhouettes that complete a sleek, uncluttered, look. Built for lasting beauty, the Hibiscus is available in a range of rust-resistant finishes designed to complement any contemporary space.
  • Thermostatic technology keeps shower temperature within 1 degree Celsius.
  • Temperature outlet factory calibrated to 104 degrees Fahrenheit and can be easily adjusted up or down to user's comfort level.
  • Six total settings allow for shared water flow between outlets, giving you the ability to use two functions at once.
  • Metal handles.

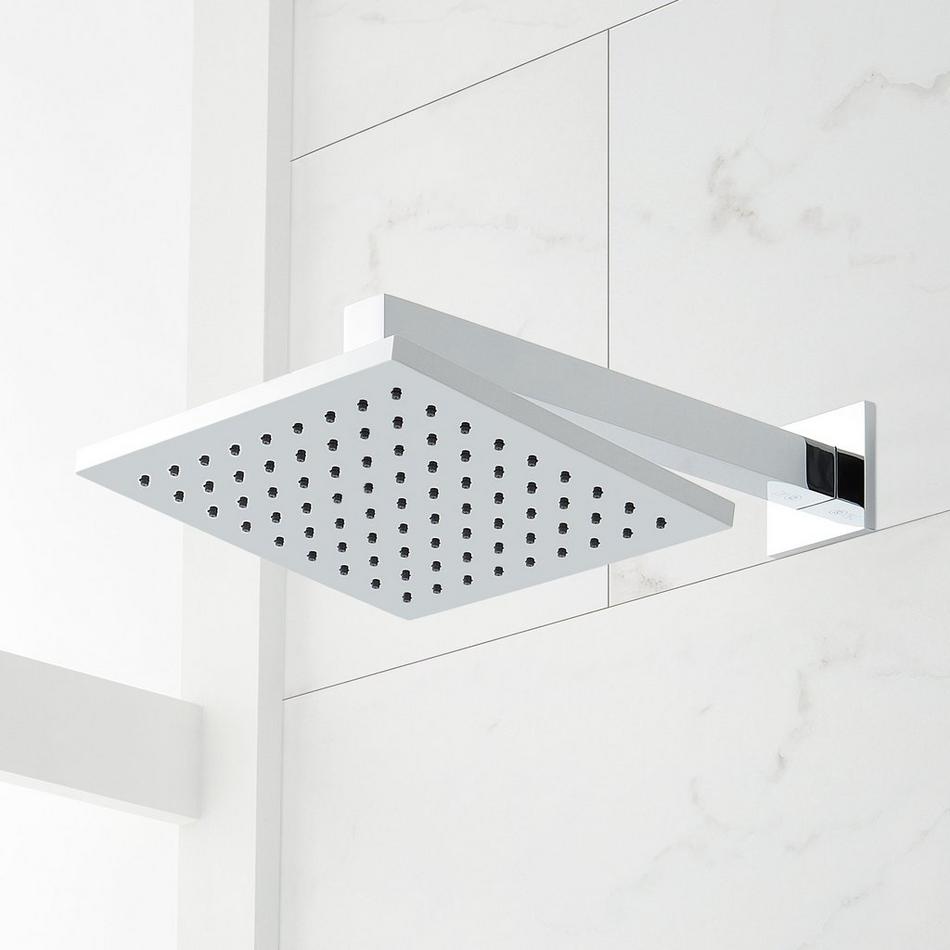

  • Dual single function shower heads (full spray) with easy-clean silicone nozzles.

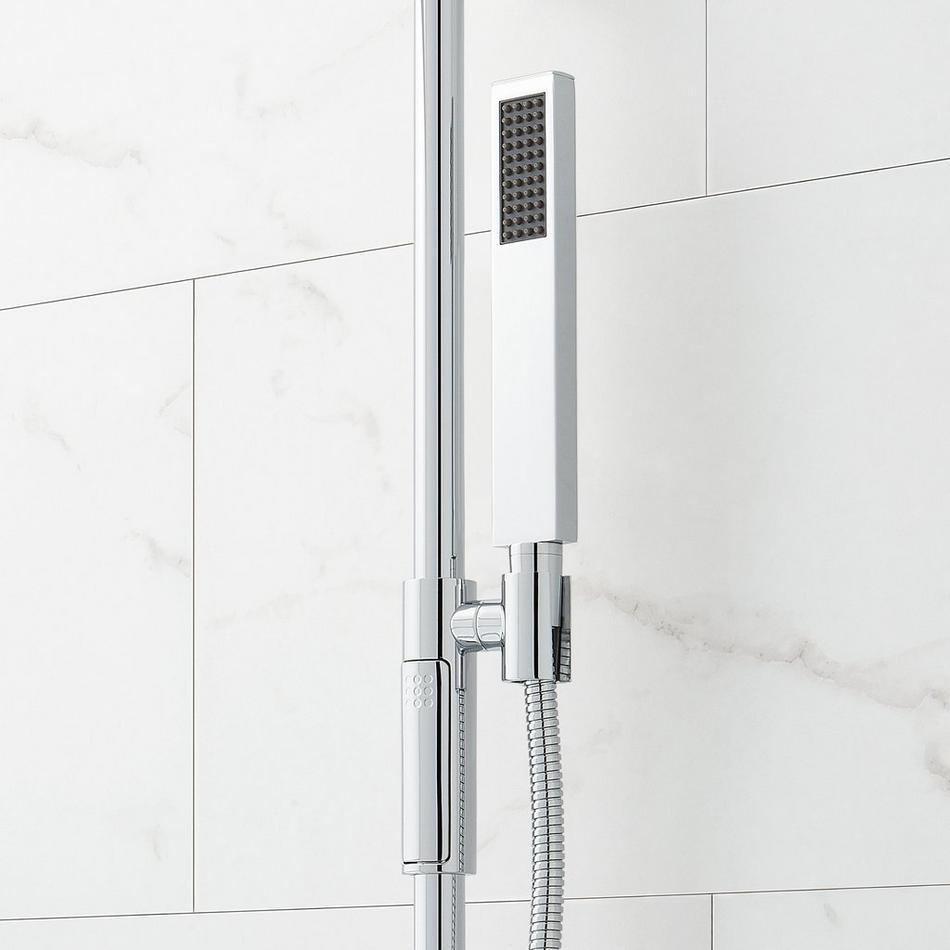

  • Single function hand shower.
  • 60" - 72" stretchable metal shower hose.
  • Adjustable angle for hand shower mount.
  • Must be installed in accordance with provided installation instructions.
  • Recommended valve installation depth 1-5/8" to 2-3/8".
  • Included Rough-in valves:

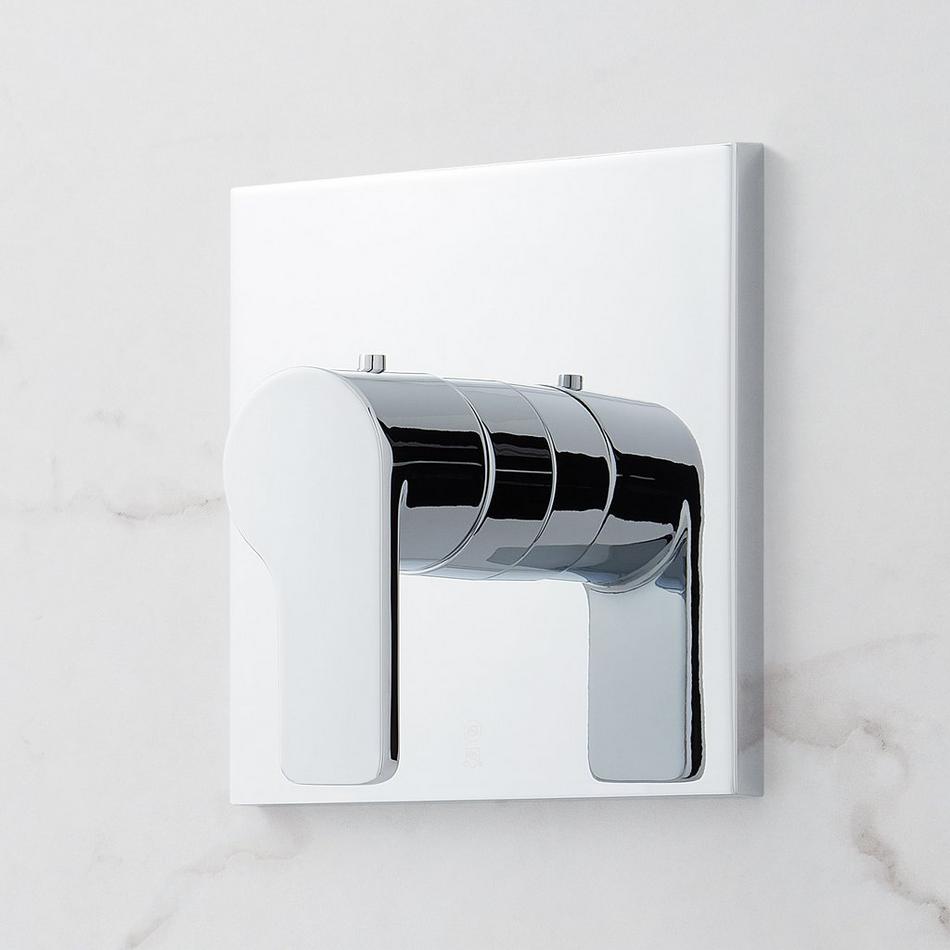

  • Thermostatic rough-in valve features scald guard protection, high temperature limit stop, integral water stops and check valve, a ceramic cartridge, and a bronze valve body.

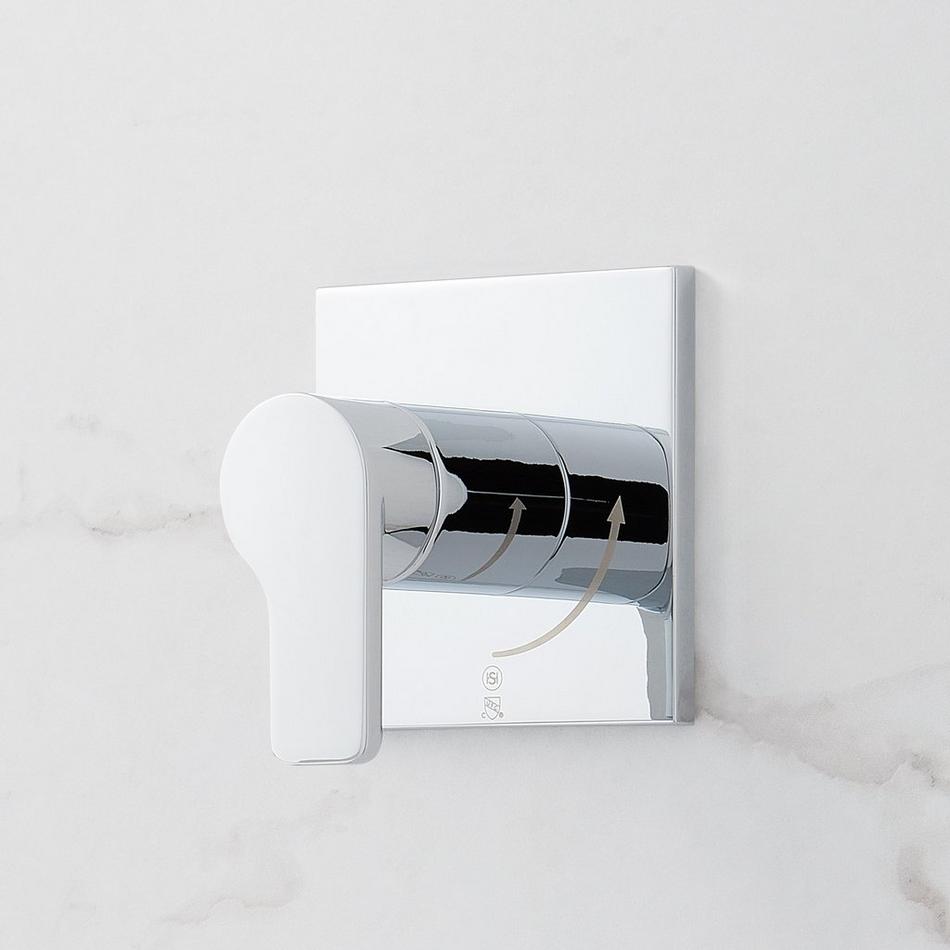

  • Volume control rough-in valve features a ceramic disc cartridge and brass valve body.

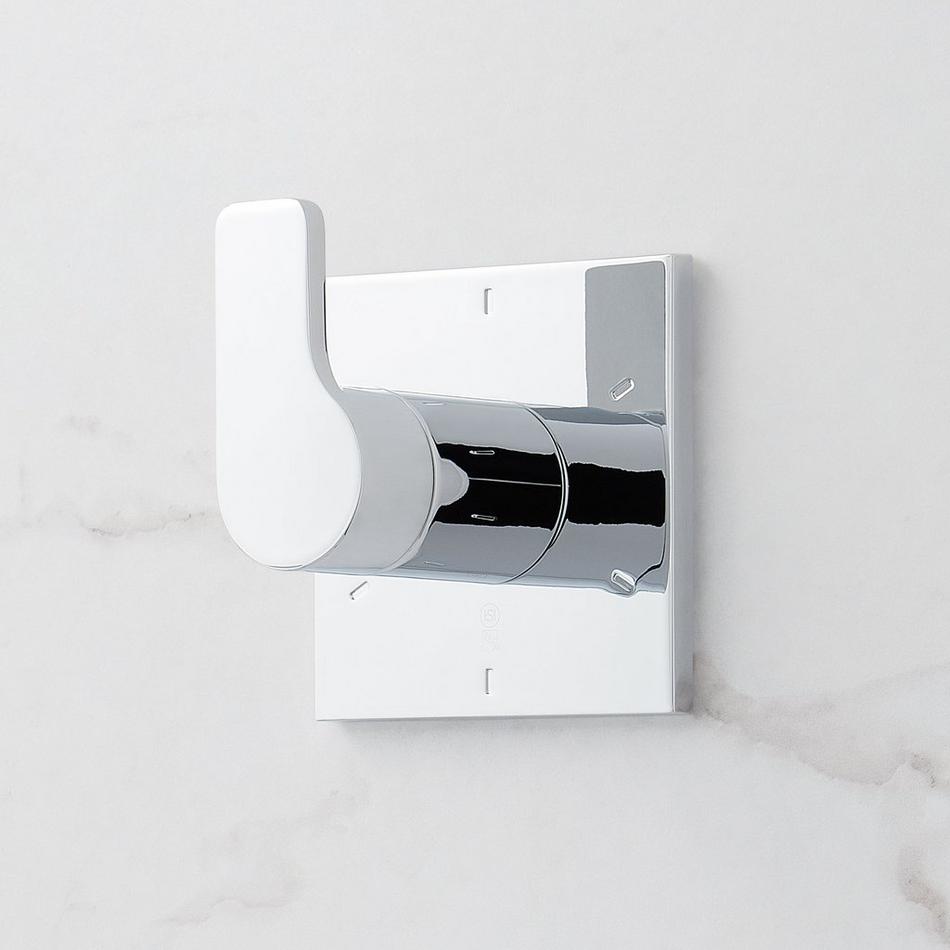

  • Diverter valve features a ceramic disc cartridge and brass valve body. An available Single-Function Diverter valve Cartridge restricts water flow to one outlet at a time.

Features
Product Type Shower Systems & Faucets
Design Modern
Diverter Included Yes
Features Hand Shower Included
Product Finish Chrome
Flow Rate Rough-in Valve Capacity: 12.9 gpm (48.8 L/min) @ 80 psi
Handle Type Lever
Hand Shower Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
Hand Shower Material Brass
Installation Type Wall
Mounting Hardware Included Yes
Number of Shower Heads 2
Shower Arm Included Yes
Shower Head Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
Shower Head Installation Type Wall-Mount
Shower Head Material 304-Grade Stainless Steel
Shower Head Spray Rainfall
Shower Head Swivel Yes
Weight (lbs) 21.94
Dimensions
Hand Shower Hose Length 60"
Hand Shower Length 8-7/16"
Shower Arm Extension 12"
Shower Arm Height 2-3/8"
Shower Head IPS 1/2"
Shower Head Length 11-3/4"
Shower Head Width 11-3/4"
Slide Bar Length 30"
Valve Trim Height 6-11/16"
Valve Trim Width 6-11/16"

Signature products in real homes.
Follow us on Instagram @signaturehw for more inspiration from our customers.

Trilogie Alt 1 SIG484704
SKU 484704 484704
Collection Hibiscus
Component SKUs SHHB9009CP,SH6006,SHRSA120SCP,SHSH2080GCP,SHHS4080GCP,SHH1010CP,SHWE2020CP,SHHB9005CP,SH6103,SHHB9007CP,SH6040,SHSB3050CP
Available 0
