Hibiscus Thermostatic Shower System with Dual Showerheads and Hand Shower - Chrome

484701 SIG484701
3.3 out of 5 Customer Rating

Hibiscus Thermostatic Shower System with Dual Showerheads and Hand Shower - Chrome

484701 SIG484701
3.3 out of 5 Customer Rating
Chrome Select an Option
Select an Option Chrome Select an Option
Select an Option Chrome Select an Option

As Selected

$1,87642
Free Shipping
We’re sorry! This product or combination is out of stock. Please shop our in-stock selections below. If you have questions, please contact customer service at 855-715-1800 or support@signaturehardware.com
You’ve reached the maximum quantity available


The Hibiscus Thermostatic Shower System with Dual Showerheads and Hand Shower is designed for modern luxury. Through dual rainfall shower heads, envelop in a spa-like experience with perfectly maintained water temperature thanks to thermostatic technology controlled by a simple single-lever valve. A hand shower adds optimal convenience, reaching any tricky areas and provides a more direct stream in an instant. While maximum in function, the Hibiscus boasts a minimally invasive design with sleek, sophisticated lines and silhouettes. Available in a variety of rust-resistant finishes, this system is built to handle daily use while perfectly complementing the rest of your space.
  • Thermostatic technology keeps shower temperature within 1 degree Celsius.
  • Temperature outlet factory calibrated to 104 degrees Fahrenheit and can be easily adjusted up or down to user's comfort level.
  • Six total settings allow for shared water flow between outlets, giving you the ability to use two functions at once.
  • Metal handles.

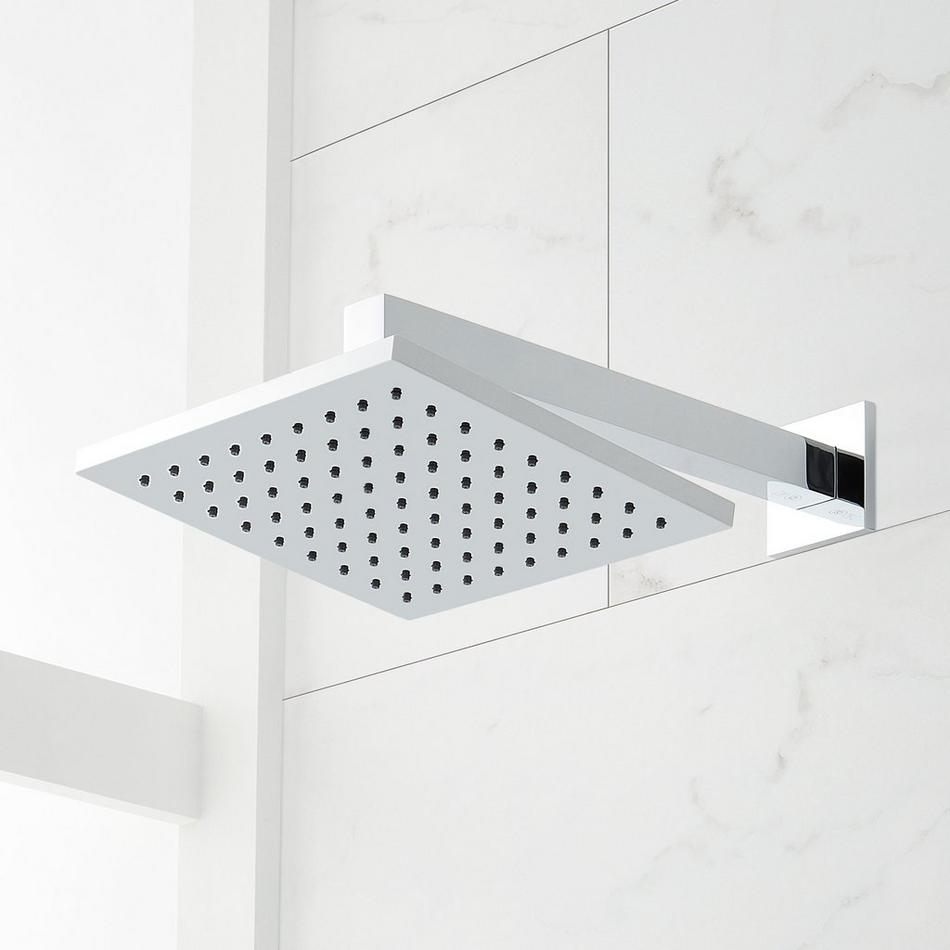

  • Dual single function shower heads (full spray) with easy-clean silicone nozzles.

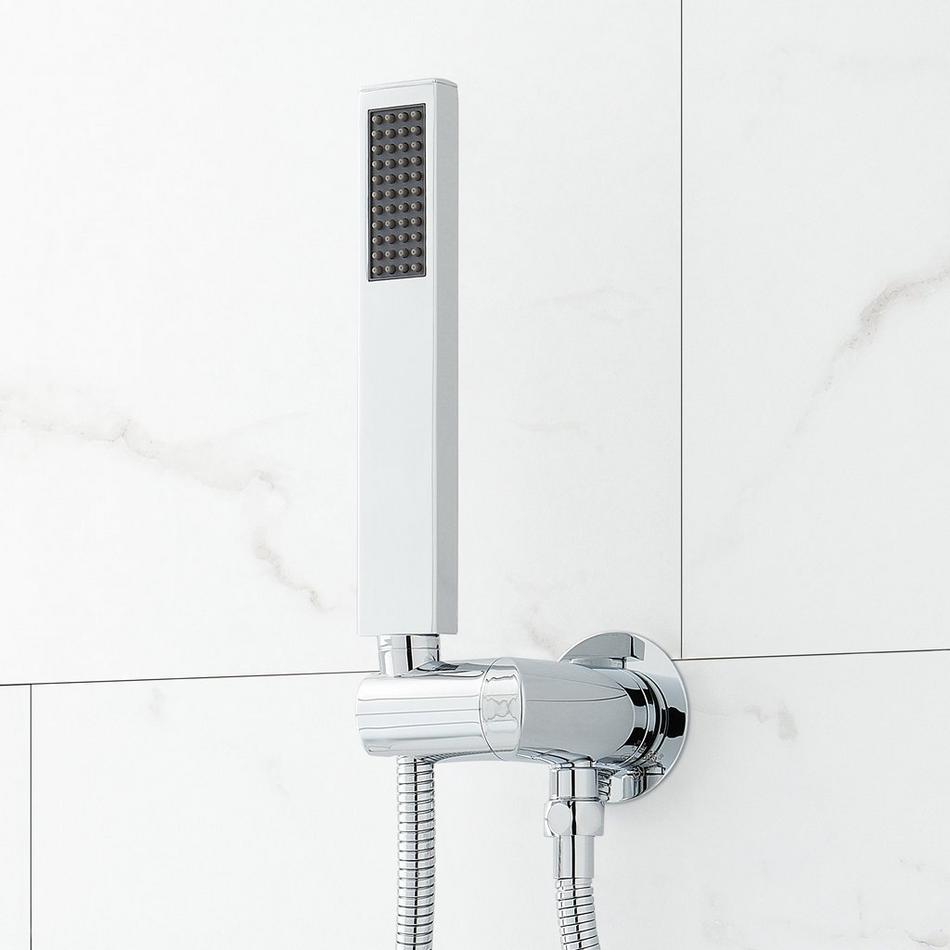

  • Single function hand shower.
  • 60" - 72" stretchable metal shower hose.
  • Adjustable angle for hand shower mount.
  • Must be installed in accordance with provided installation instructions.
  • Recommended valve installation depth 1-5/8" to 2-3/8".
  • Included Rough-in valves:

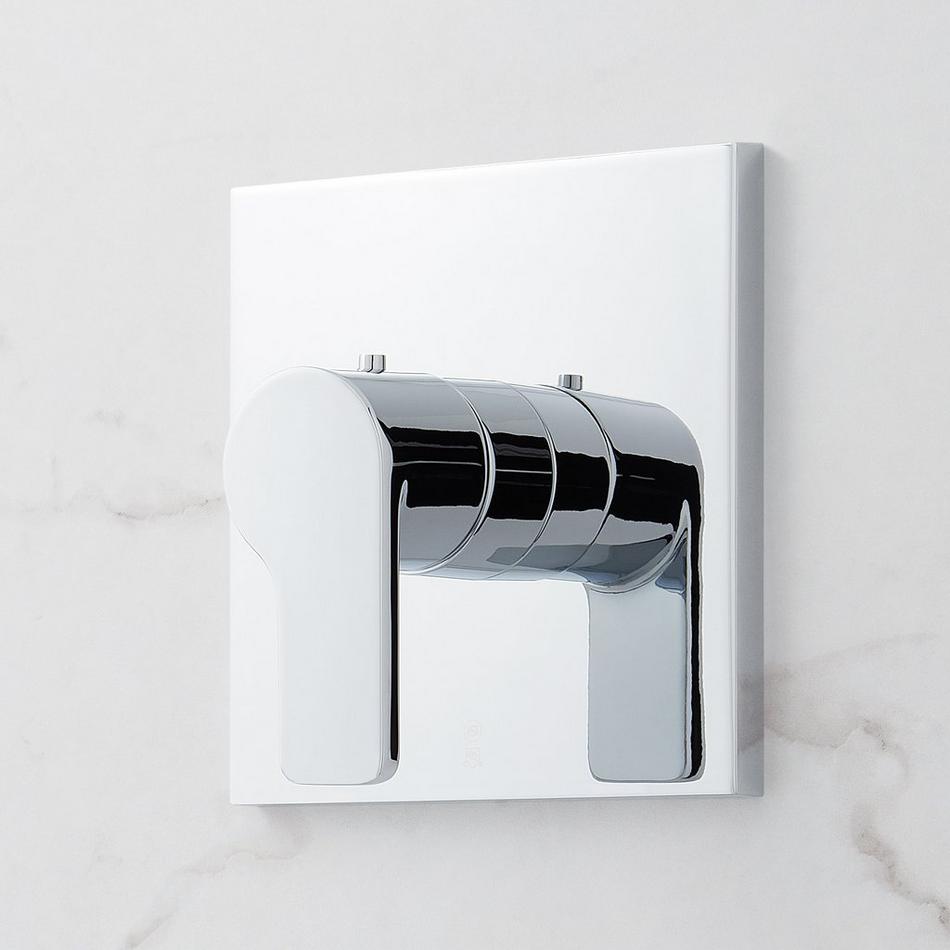

  • Thermostatic rough-in valve features scald guard protection, high temperature limit stop, integral water stops and check valve, a ceramic cartridge, and a bronze valve body.

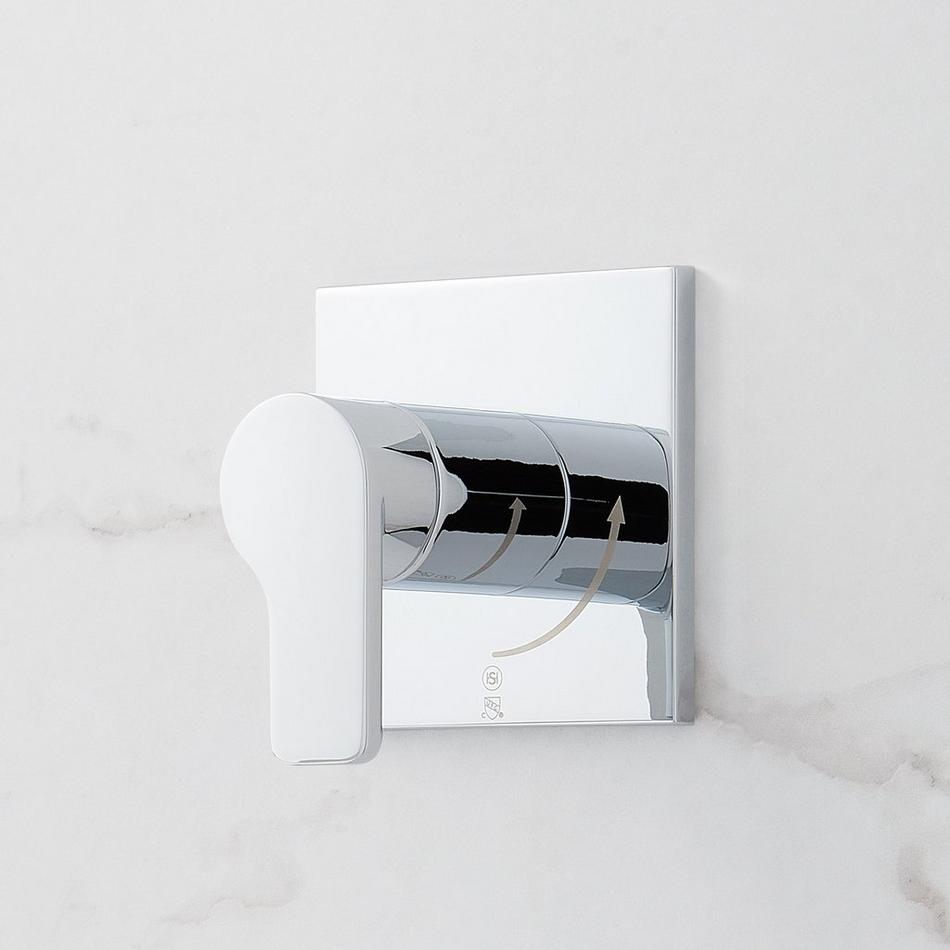

  • Volume control rough-in valve features a ceramic disc cartridge and brass valve body.

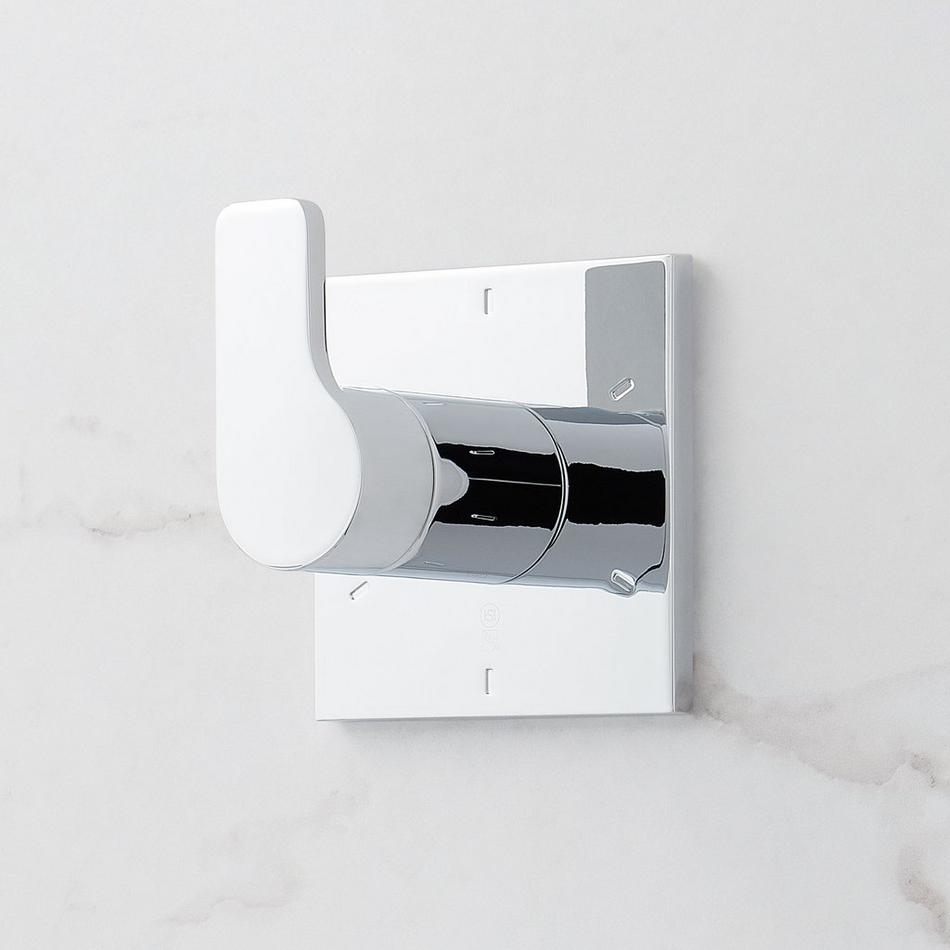

  • Diverter valve features a ceramic disc cartridge and brass valve body. An available Single-Function Diverter valve Cartridge restricts water flow to one outlet at a time.

Features
Product Type Shower Systems & Faucets
Design Modern
Diverter Included Yes
Features Hand Shower Included
Product Finish Chrome
Flow Rate Rough-in Valve Capacity: 12.9 gpm (48.8 L/min) @ 80 psi
Handle Type Lever
Hand Shower Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
Hand Shower Material Brass
Installation Type Wall
Mounting Hardware Included Yes
Number of Shower Heads 2
Shower Arm Included Yes
Shower Head Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
Shower Head Installation Type Wall-Mount
Shower Head Material 304-Grade Stainless Steel
Shower Head Spray Rainfall
Shower Head Swivel Yes
Weight (lbs) 19.97
Dimensions
Hand Shower Hose Length 60"
Hand Shower Length 8-7/16"
Shower Arm Extension 12"
Shower Arm Height 2-3/8"
Shower Head IPS 1/2"
Shower Head Length 11-3/4"
Shower Head Width 11-3/4"
Valve Trim Height 6-11/16"
Valve Trim Width 6-11/16"

Signature products in real homes.
Follow us on Instagram @signaturehw for more inspiration from our customers.

Trilogie Alt 1 SIG484701
SKU 484701 484701
Collection Hibiscus
Component SKUs SHHB9009CP,SH6006,SHRSA120SCP,SHSH2080GCP,SHHS4080GCP,SHH1010CP,SHWES2050CP,SHHB9005CP,SH6103,SHHB9007CP,SH6040
Available 0
