Hibiscus Thermostatic Shower System with 3 Body Sprays, Slide Bar and Hand Shower

Shop the Hibiscus Collection
953898 null
3.1 out of 5 Customer Rating
Select an Option
Select an Option Select an Option
Select an Option Select an Option

Starting At

2,436 dollars 06 cents
Free Shipping
Details
Select Styles for Availability
You’ve reached the maximum quantity available

Shop In-Stock Selections

For a space teeming with modern luxury, Hibiscus Thermostatic Shower System with 3 Body Sprays, Slide Bar and Hand Shower is a perfect choice. From the rainfall shower head, enjoy your preferred water temperature held consistently thanks to built-in thermostatic technology. Furthering a spa-like experience, this system includes three body sprays and a convenient hand shower, mounted on a vertical slide bar to make reaching targeted areas easier than ever. As eye-catching as it is functional, the Hibiscus flaunts a sleek, uncluttered look with its angular silhouettes throughout each piece. Ensuring lasting beauty, a variety of corrosion-resistant finishes are available to choose from.
  • Thermostatic technology keeps shower temperature within 1 degree Celsius.
  • Temperature outlet factory calibrated to 104 degrees Fahrenheit and can be easily adjusted up or down to user's comfort level.
  • Six total settings allow for shared water flow between outlets, giving you the ability to use two functions at once.
  • Metal handles.

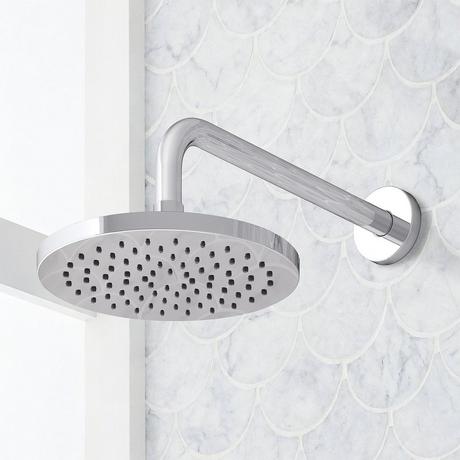

  • Single function shower head (full spray) with easy-clean silicone nozzles.

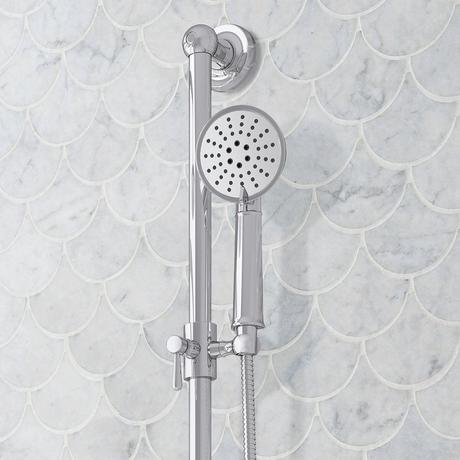

  • Single function hand shower.
  • 60" - 72" stretchable metal shower hose.
  • Adjustable angle for hand shower mount.

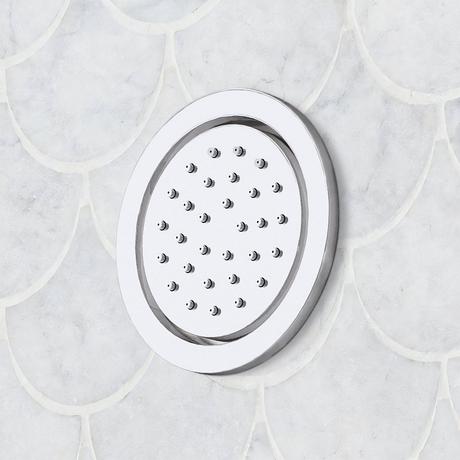

  • Body spray jet swivels with a 3-9/16" surface area.
  • Body spray flow rate: 2.5 gpm (9.5L/min) max @ 80 psi.
  • Must be installed in accordance with provided installation instructions.
  • Recommended valve installation depth 1-5/8" to 2-3/8"
  • Included Rough-in valves:

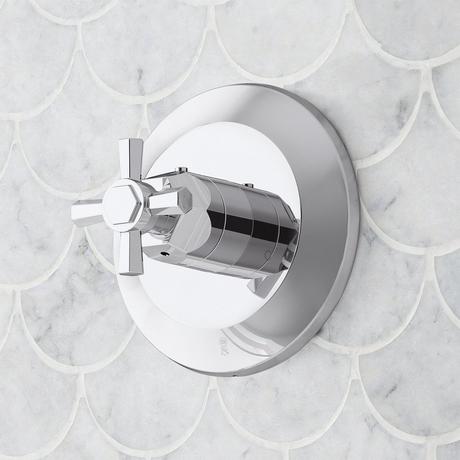

  • Thermostatic rough-in valve features scald guard protection, high temperature limit stop, integral water stops and check valve, a ceramic cartridge, and a bronze valve body.

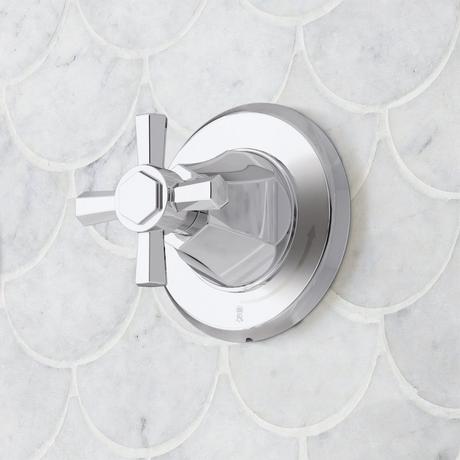

  • Volume control rough-in valve features a ceramic disc cartridge and brass valve body.

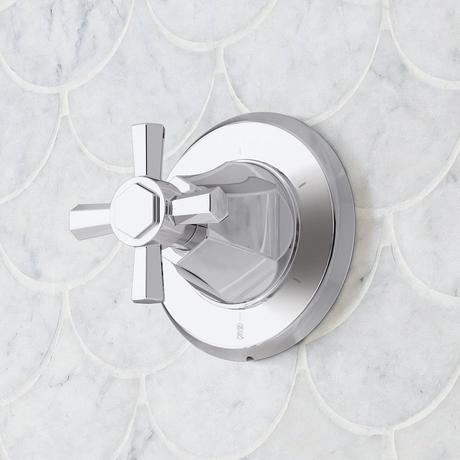

  • Diverter valve features a ceramic disc cartridge and brass valve body. An available Single-Function Diverter valve Cartridge restricts water flow to one outlet at a time.

Features

Product Type
Shower Systems & Faucets
Body Spray Flow Rate
2.5 gpm (9.5 L/min) @ 80 psi
Body Sprays
Yes
Diverter Included
Yes
Features
Thermostatic
Hand Shower Included
Flow Rate
Rough-in Valve Capacity: 12.9 gpm (48.8 L/min) @ 80 psi
Handle Type
Lever
Hand Shower Flow Rate
1.8 gpm (6.8 L/min) @ 80 psi
Hand Shower Material
Brass
Installation Type
Wall
Mounting Hardware Included
Yes
Number of Shower Heads
1
Shower Arm Included
Yes
Shower Head Flow Rate
1.8 gpm (6.8 L/min) @ 80 psi
Shower Head Installation Type
Wall
Shower Head Material
304-Grade Stainless Steel
Shower Head Spray
Rainfall
Shower Head Swivel
Yes

Dimensions

Hand Shower Hose Length
60"
Hand Shower Length
8-7/16"
Shower Arm Extension
12"
Shower Arm Height
2-3/8"
Shower Head IPS
1/2"
Shower Head Length
7-7/8"
Shower Head Width
7-7/8"
Slide Bar Length
30"
Valve Trim Height
6-11/16"
Valve Trim Width
6-11/16"
