Greyfield Pressure Balance Shower System with Slide Bar and Hand Shower - Aged Brass

488322 SH488322
3.6 out of 5 Customer Rating

Greyfield Pressure Balance Shower System with Slide Bar and Hand Shower - Aged Brass

488322 SH488322
3.6 out of 5 Customer Rating
Select an Option
Select an Option Aged Brass (+$262.33) Select an Option
Select an Option Aged Brass (+$262.33) Select an Option

As Selected

$1,60570
Free Shipping
You’ve reached the maximum quantity available

Estimate your Delivery Date

Sleek from style to functionality, the Greyfield Pressure Balance Shower System with Slide Bar and Hand Shower elevates any shower setup. Among the simple, elegant silhouettes used throughout, a convenient hand shower is included for optimal rinsing while its slide bar makes adjusting height a breeze between various users or tasks. Featuring pressure balance technology, the Greyfield carefully maintains your water temperature despite any fluctuations in pressure. To best complement your space, choose from our wide selection of stunning, corrosion-resistant finishes.

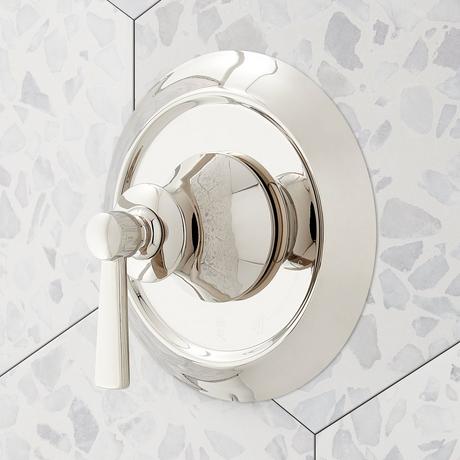

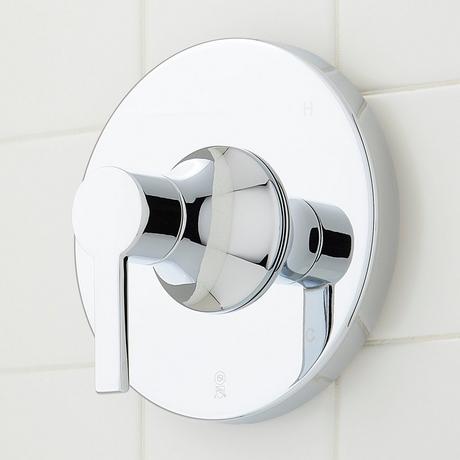

Greyfield Pressure Balance Shower Valve Trim :
  • Metal handle.
  • Metal escutcheon.
  • Pressure Balance Tub & Shower Rough-In Valve:
  • Pressure balance valve with integral stops.
  • One-piece cartridge design for ease of maintenance.
  • Back-to-back capability.
  • Ceramic disc valve cartridge.
  • Cast bronze valve body.
  • Adjustable temperature limit stop.
  • Easy mounting brackets.
  • 12" Wall-Mount Rainfall Shower Arm:
  • Solid brass construction.
  • Escutcheon included.

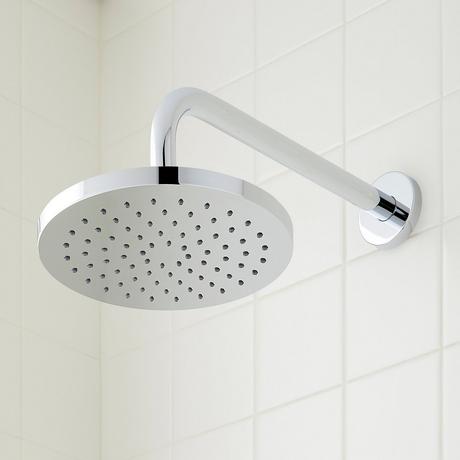

  • 8" Modern Round Rainfall Shower Head - 1.8 GPM:
  • Single function shower head (full spray).
  • Easy clean rubber nozzles.
  • Brass ball joint.

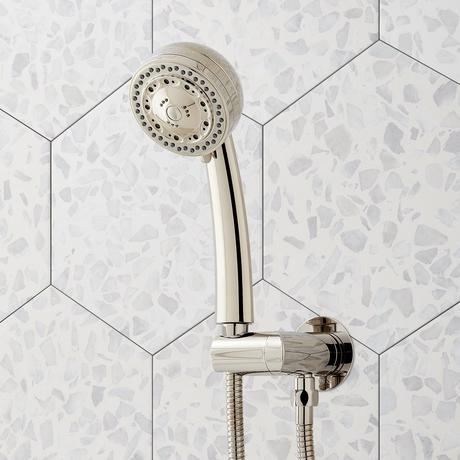

  • Round Paddle Multifunction Hand Shower:
  • 3 function hand shower (full spray, massage spray, full & massage spray).
  • Easy-clean spray nozzles.
  • Factory installed backflow prevention check valve.
  • 60" Stretchable Metal Hand Shower Hose:
  • Double spiral constructed hose.
  • Swivel Water Supply Elbow and Bracket for Hand Shower :
  • 1/2" Female wall connection.
  • 1/2" Male hose connection.
  • Brass inlet/outlet, ABS body.
  • Contemporary Slide Bar for Hand Shower :
  • Metal bar and mounting posts.
  • Adjustable angle for hand shower mount.

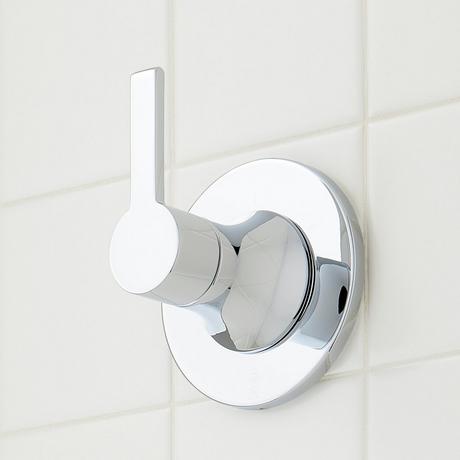

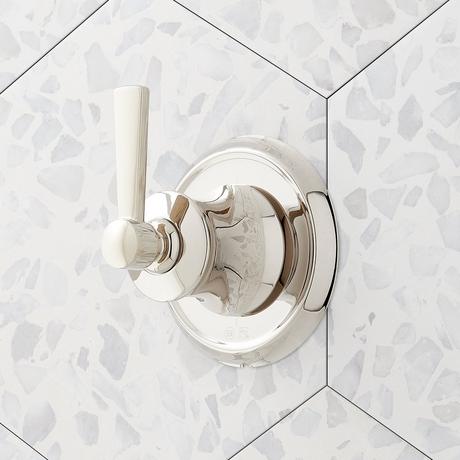

  • Greyfield In-Wall Shower Diverter Trim:
  • Metal handle.
  • Metal Escutcheon.
  • 3-Way In-Wall Diverter Rough-In Valve - 3/4":
  • For installations only requiring 2 outlets, the 3rd outlet may be looped into one of the existing pipes.

  • Features
    Product Type Shower Systems & Faucets
    Assembly Required Yes
    Ceramic Disc Cartridges Yes
    Design Modern
    Diverter Included Yes
    Features Rough-In Included
    Product Finish Aged Brass
    Flow Rate 6.34 gpm (24.0 L/min) @ 80 psi1.75 gpm (6.6 L/min) @ 80 psi
    Handle Type Lever
    Hand Shower Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
    Hand Shower Material ABS
    Installation Type Wall Mount
    Material Brass, ABS
    Mounting Hardware Included Yes
    Number of Shower Heads 1
    Rainfall Shower Head Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
    Shape Round
    Shower Arm Included Yes
    Shower Head Flow Rate 1.75 gpm (6.6 L/min) @ 80 psi
    Shower Head Installation Type Wall
    Shower Head Spray Rainfall
    Shower Head Swivel Yes
    Weight (lbs) 15.75
    Dimensions
    Hand Shower Hose Length 60"
    Hand Shower Length 9-5/8"
    Shower Arm Extension 12-3/8"
    Shower Arm Height 5-3/8"
    Shower Head IPS 1/2" NPSM
    Shower Head Length 8"
    Shower Head Width 8"
    Slide Bar Length 28"
    Valve Trim Height 6-11/16"
    Valve Trim Width 6-11/16"

    Signature products in real homes.
    Follow us on Instagram @signaturehw for more inspiration from our customers.

    Trilogie Alt 1 SH488322
    SKU 488322 488322
    Collection Greyfield
    Component SKUs
    Available 139

    Reviews


    Questions
