Elita Pressure Balance Shower System with Slide Bar and Hand Shower - Cross Handles - Brushed Nickel

Name: Elita Pressure Balance Shower System with Slide Bar and Hand Shower - Cross Handles - Brushed Nickel
SKU: 497708
Price: 1546.33 USD
Availability: InStock

Shop the Elita Collection

SIG497708

Brushed Nickel

Select an Option Brushed Nickel (+$236.62)

Brushed Nickel (+$236.62)

As Selected

$1,546³³

Free Shipping

Details

Add elegant style and simplicity to your bathroom with the Elita Pressure Balance Shower System. This set is constructed from durable metal and features cross handles, a hand shower, and a slide bar—which quickly customizes your hand shower height between users and tasks. Control the water pressure and temperature with the included pressure balance valve for the most reliable, comfortable rinse. Available in a variety of finishes, it’s easy to customize this shower set to your style.

Metal construction for ultimate strength and durability.

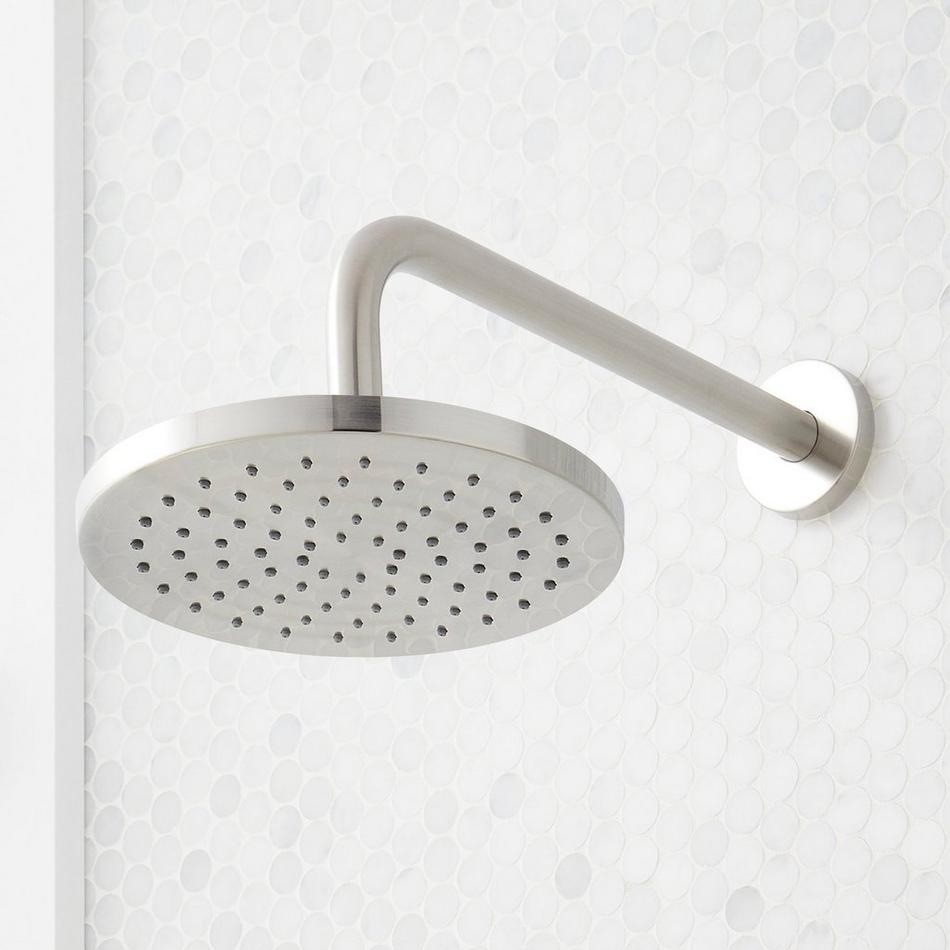

Single function 8" Rainfall shower head.

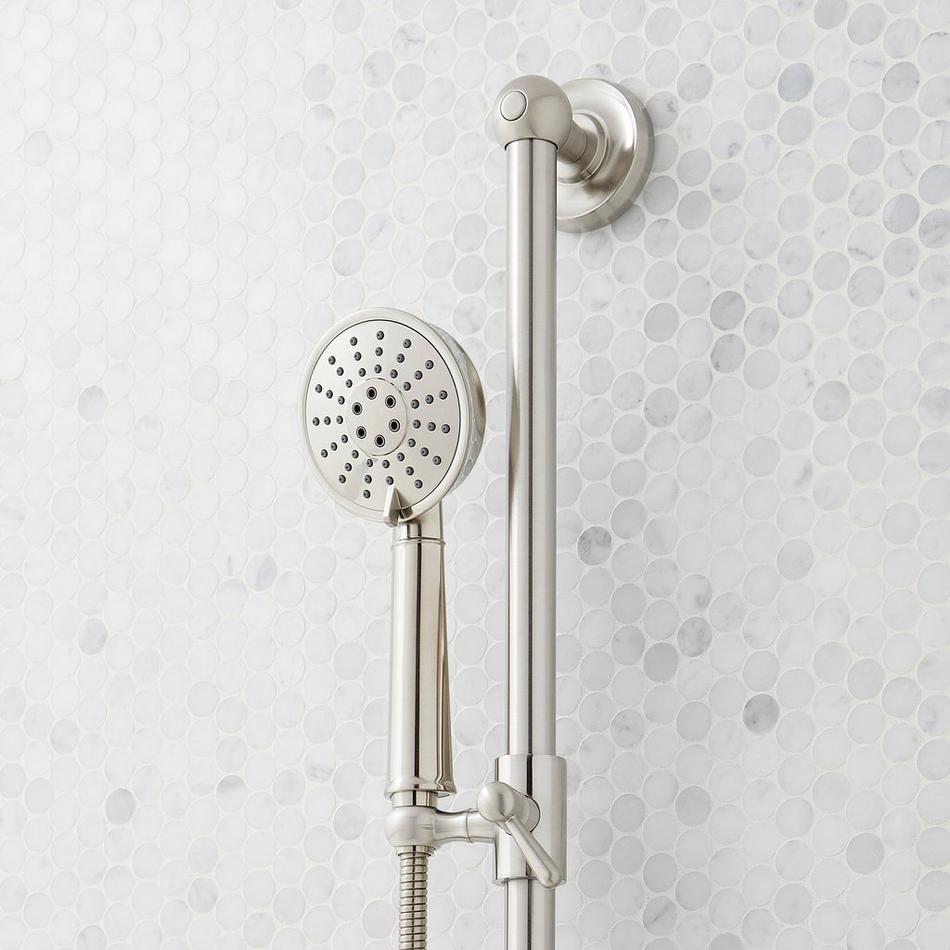

3 function hand shower (full spray, massage spray, full & massage spray).
60" - 72" stretchable metal shower hose.
Included Rough-in valves:

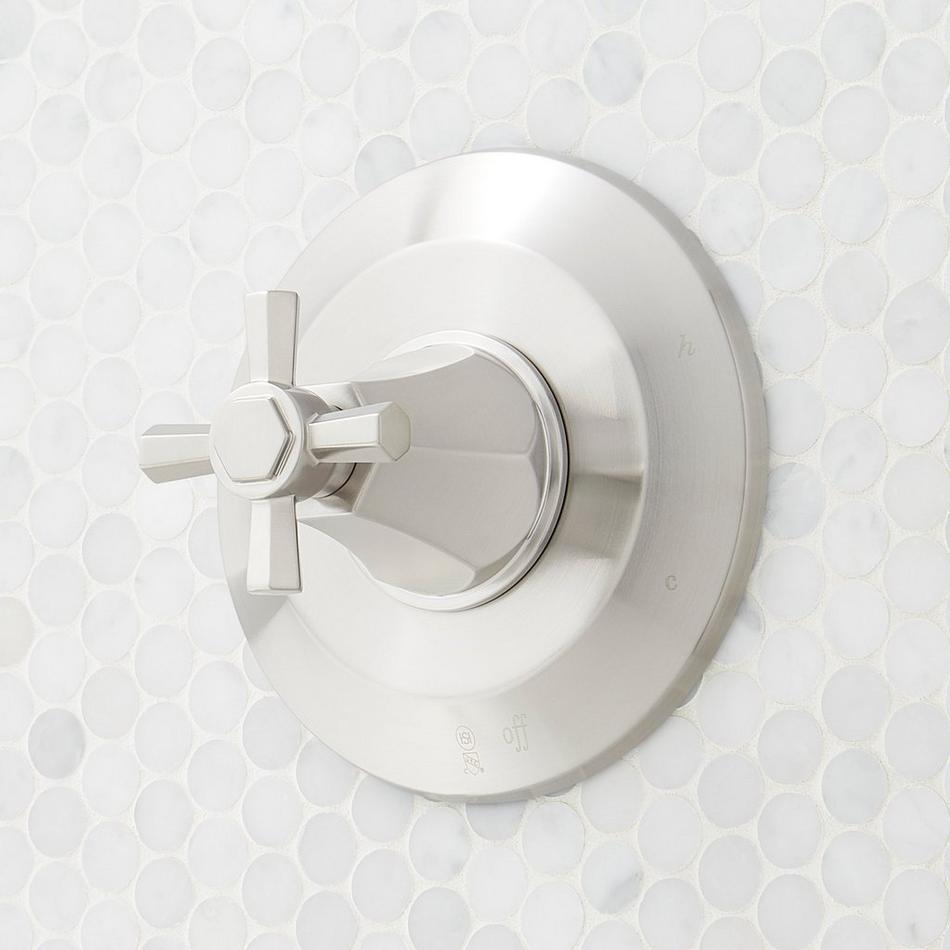

- Pressure balance valve features a one-piece cartridge design for ease of maintenance, back-to-back capability, a ceramic disc cartridge, cast bronze valve body, adjustable temperature limit stop, a quick remove plaster guard, easy mounting brackets and integral stops.

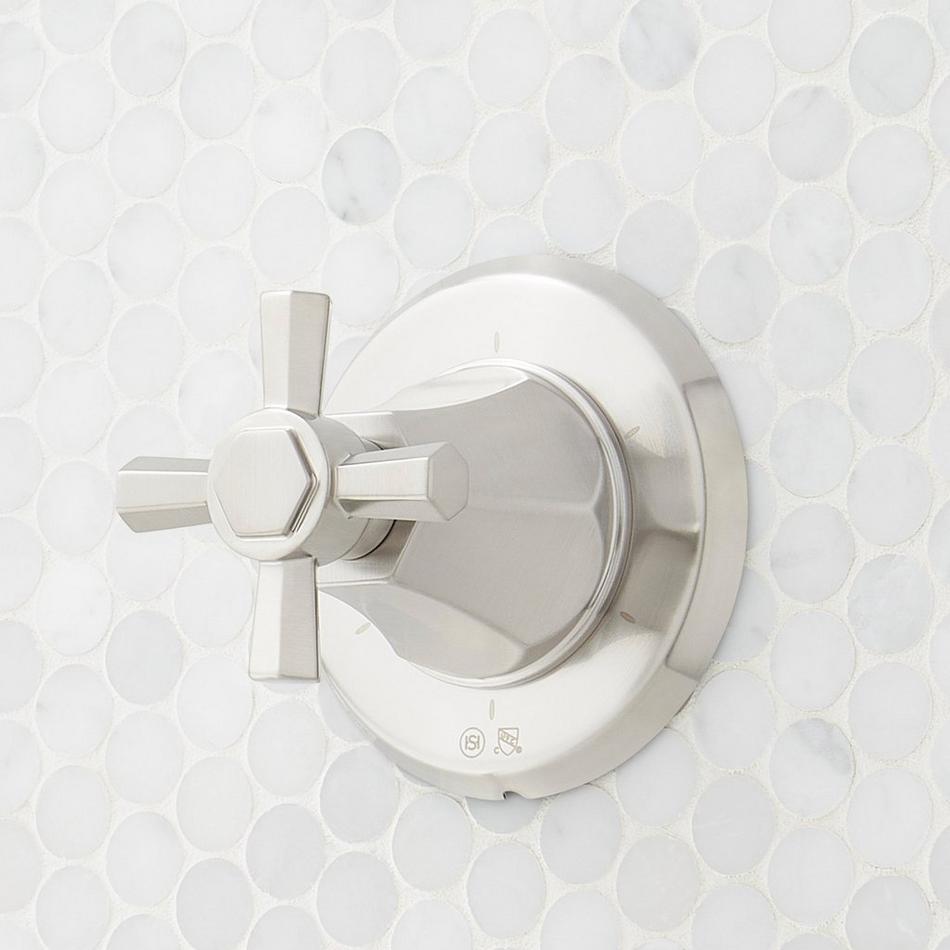

- Diverter Valve features brass valve body and ceramic disc cartridge.
  - Six total settings allow for shared water flow between outlets, giving you the ability to use two functions at once.
  - Not intended as a shut off valve.

Shop more of the Elita Collection

Features

Product Type Shower Systems & Faucets

Assembly Required Yes

Body Sprays No

Diverter Included Yes

Features Hand Shower Included

Product Finish Brushed Nickel

Flow Rate Rough-in Valve Capacity: 6.3 gpm (23.8 L/min) @ 80 psi

Handle Type Cross

Hand Shower Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi

Hand Shower Material ABS

Material Metal

Number of Shower Heads 1

Shower Arm Included Yes

Shower Head Flow Rate 1.75 gpm (6.6 L/min) @ 80 psi

Shower Head Installation Type Wall Mount

Shower Head Material ABS

Shower Head Spray Rainfall

Shower Head Swivel Yes

Weight (lbs) 13.25

Dimensions

Hand Shower Hose Length 60-72"

Hand Shower Length 9-7/16"

Shower Arm Extension 12"

Shower Arm Height 4-7/16"

Shower Head Diameter 8"

Shower Head IPS 1/2"

Slide Bar Length 30"

Resources

Specifications Installation Instructions Parts Breakdown

Trilogie Alt 1 SIG497708

SKU 497708

Collection Elita

Component SKUs SHEL441001BN;SH4001;SHRSA123ZBN;SHRSB820RGZBN;SHHS4090GZBN;SHH1010ZBN;SHWE2040ZBN;SHSB3010ZBN;SHEL441004BN;SH6103;SHEL441003BN;SHEL441006BN
