Berwyn Pressure Balance Tub and Shower System

Shop the Berwyn Collection
953654 null
5 out of 5 Customer Rating
Select an Option
Select an Option Select an Option
Select an Option Select an Option

Starting At

634 dollars 61 cents
Free Shipping
Details
Select Styles for Availability
You’ve reached the maximum quantity available

Shop In-Stock Selections

Estimate your Delivery Date

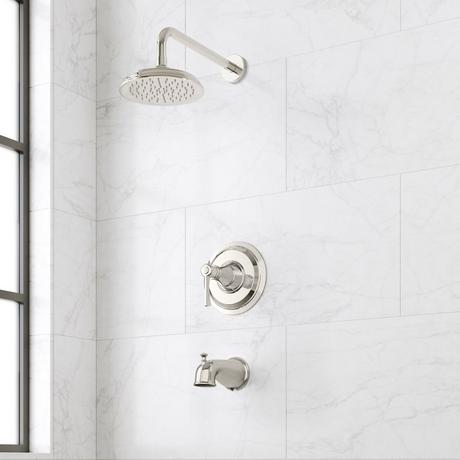

Give your bathroom the ultimate modern upgrade with the Berwyn Pressure Balance Tub and Shower System. Streamlined in shape, these sleek pieces instantly elevate your space into a minimalist oasis. In addition to a rainfall shower head and 12" arm, its tub spout features a built-in diverter that allows you to switch between water channels with ease. Its pressure-balanced mechanisms further your luxurious experience by preventing unwanted fluctuations in temperature and pressure. Select your favorite finish for the complete, desired look.
  • All dimensions are (± 1/2").

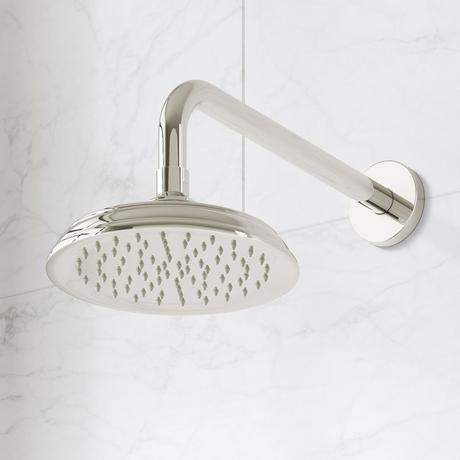

  • Single function Rainfall shower head.
  • 12" shower arm.

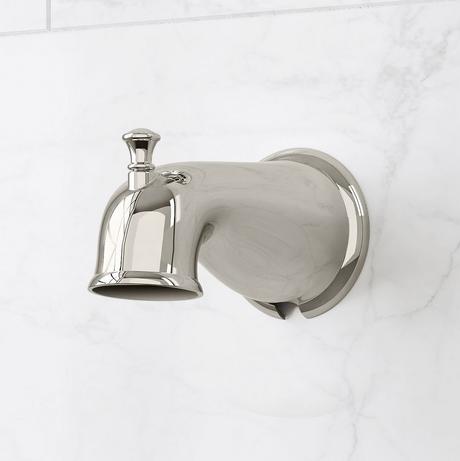

  • Tub spout diverter.
  • 1/2" connection slip-fit tub spout.
  • Tub Spot flow rate: 9.5 gpm (35.7L/min) @ 80 psi.

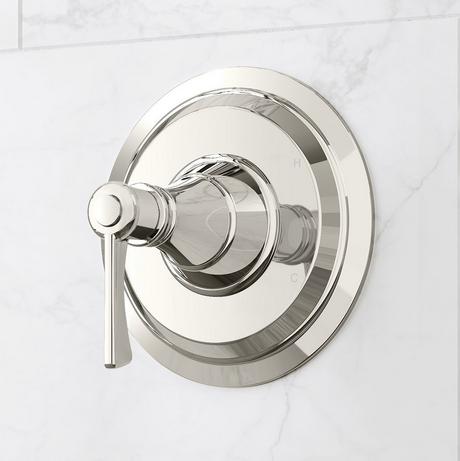

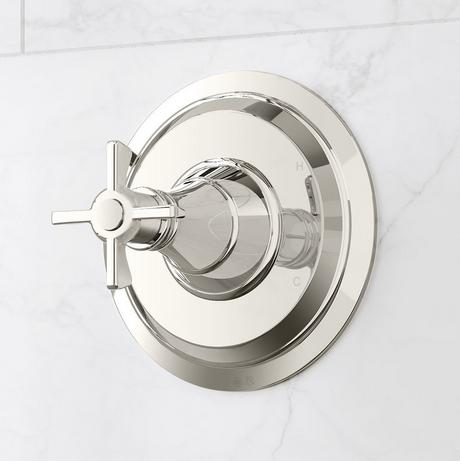

  • Rough-in Valve:
  • Pressure balance valve with integral stops.
  • One-piece cartridge design for ease of maintenance.
  • Back-to-back capability.
  • Ceramic disc valve cartridge.
  • Cast bronze valve body.
  • Adjustable temperature limit stop.
  • Quick remove plaster guard.
  • Easy mounting brackets.

Features

Product Type
Shower Systems & Faucets
Assembly Required
Yes
Ceramic Disc Cartridges
Yes
Design
Modern
Diverter Included
Yes
Features
Pressure-Balanced
Rough-In Included
Flow Rate
Rough-in Valve Capacity: 6.3 gpm (23.8 L/min) @ 80 psi
Handle Material
Metal
Handle Type
Lever
Hand Shower Flow Rate
1.8 gpm (6.8 L/min) @ 80 psi
Hot and Cold Indicators
Yes
Installation Type
Wall Mount
Material
Metal
Number of Shower Heads
1
Rainfall Shower Head Flow Rate
1.75 gpm (6.6 L/min) @80 psi
Shower Arm Included
Yes
Shower Head Flow Rate
1.75 gpm (6.6 L/min) @ 80 psi
Shower Head Installation Type
Wall
Shower Head Material
Metal
Shower Head Spray
Rainfall
Shower Head Swivel
Yes
Weight (lbs)
5.0

Dimensions

Handle Length
3"
Shower Arm Extension
11-1/8"
Shower Arm Height
3-1/2"
Shower Head IPS
1/2"
Shower Head Length
7-7/8"
Spout Reach
6-7/8"
Tub Filler Spout Reach
6-7/8"
Valve Trim Width
6-3/4"
