Beasley Thermostatic Shower System with Dual Showerheads, Slide Bar & Hand Shower - Chrome

485862 SIG485862
3.2 out of 5 Customer Rating

Beasley Thermostatic Shower System with Dual Showerheads, Slide Bar & Hand Shower - Chrome

485862 SIG485862
3.2 out of 5 Customer Rating
Chrome Select an Option
Select an Option Chrome Select an Option
Select an Option Chrome Select an Option

As Selected

$1,93802
Free Shipping
We’re sorry! This product or combination is out of stock. Please shop our in-stock selections below. If you have questions, please contact customer service at 855-715-1800 or support@signaturehardware.com
You’ve reached the maximum quantity available


Transform your primary bathroom into an elegant oasis with the Beasley Thermostatic Shower System with Dual Showerheads, Slide Bar & Hand Shower. Designed for optimal rinsing and shared use, dual showerheads meet a convenient hand shower, attached on a slide bar for easily customizing its height. Integrated with a thermostatic valve, your ideal water temperature is kept consistent throughout every use. Complementing the luxurious details seen throughout, the Beasley is available in a stunning selection of corrosion-resistant finishes.

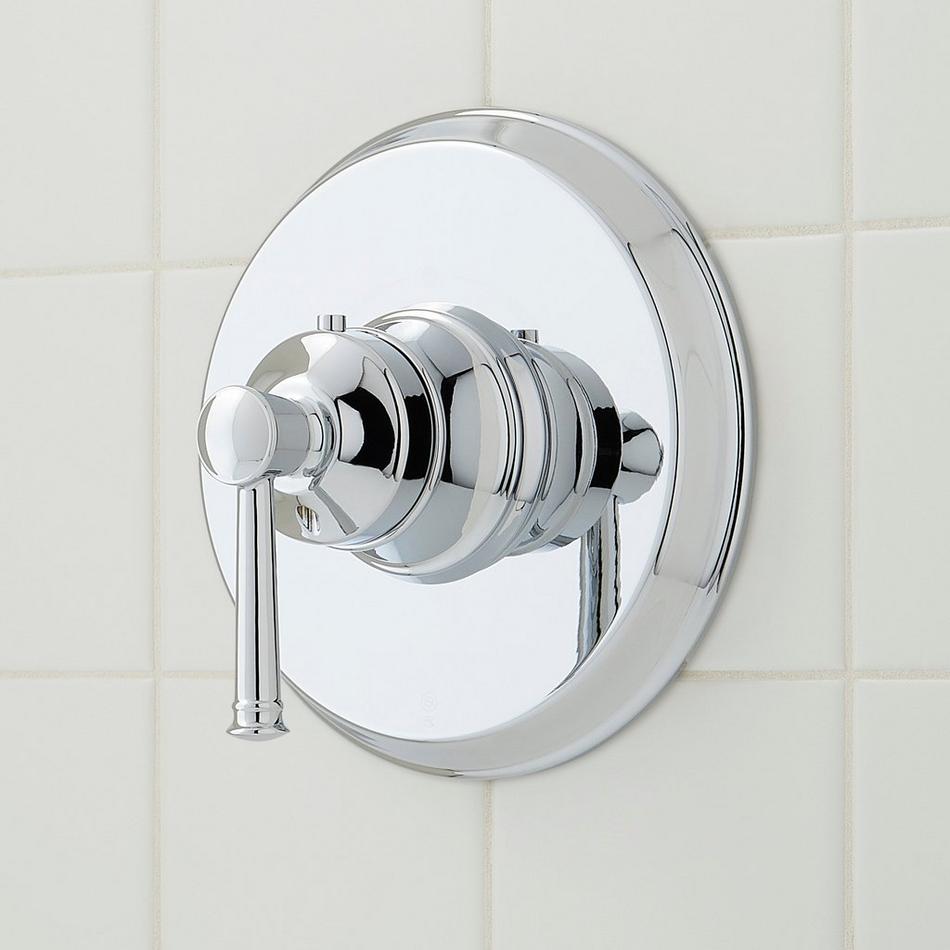

Beasley Thermostatic Shower Valve Trim:
  • Overall Projection: 7".Temperature outlet factory preset to 104 degrees Fahrenheit.
  • Temperature can be easily adjusted up and down to user's comfort level.
  • Scald guard protection.
  • High temperature limit stop.
  • Thermostatic technology keeps shower temperature within 1 degree Celsius.
  • Wall thickness range: 1" to 1-3/4"
  • Thermostatic Rough-In Valve - 3/4" Connection:
  • Bronze valve body.
  • Factory-calibrated comfort setting at 104 degrees Fahrenheit.
  • Water inlet stops and check valve.
  • Thermostatic technology keeps shower temperature ±1 degree Celsius.
  • 12" Wall-Mount Rainfall Shower Arm:
  • Solid brass construction.
  • Escutcheon included.

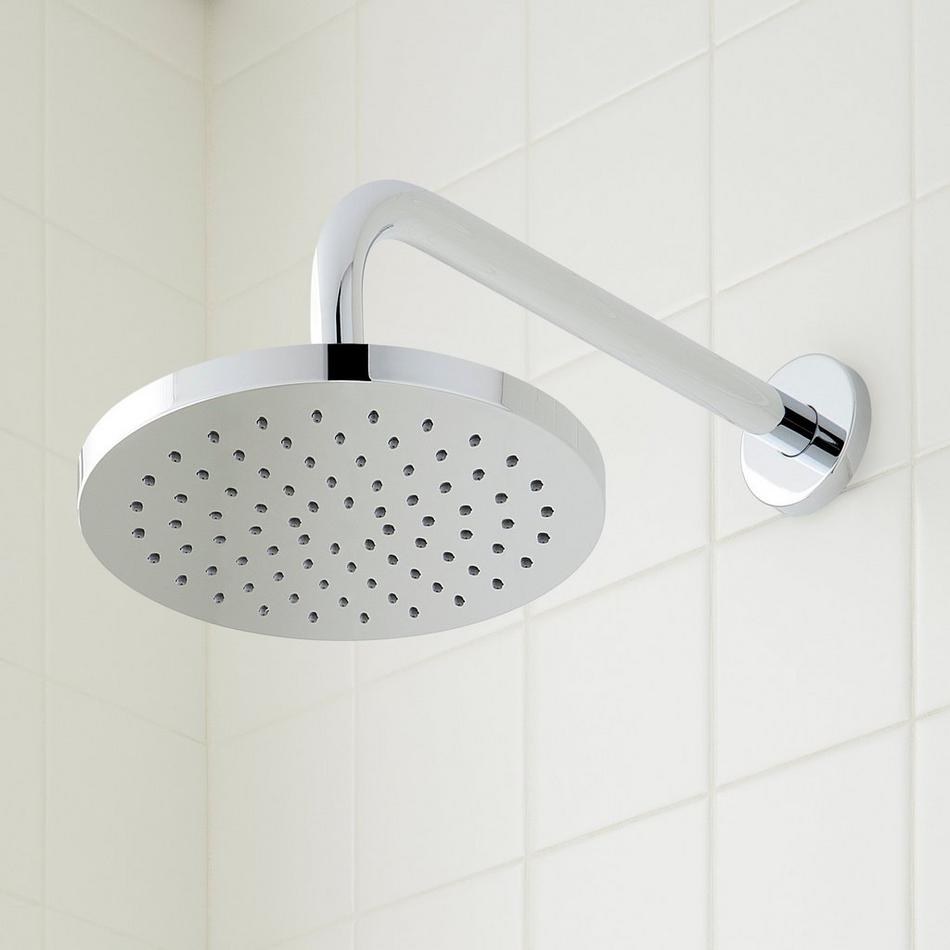

  • 8" Modern Round Rainfall Shower Head :
  • Single function shower head (full spray).
  • Easy clean rubber nozzles.
  • Brass ball joint.

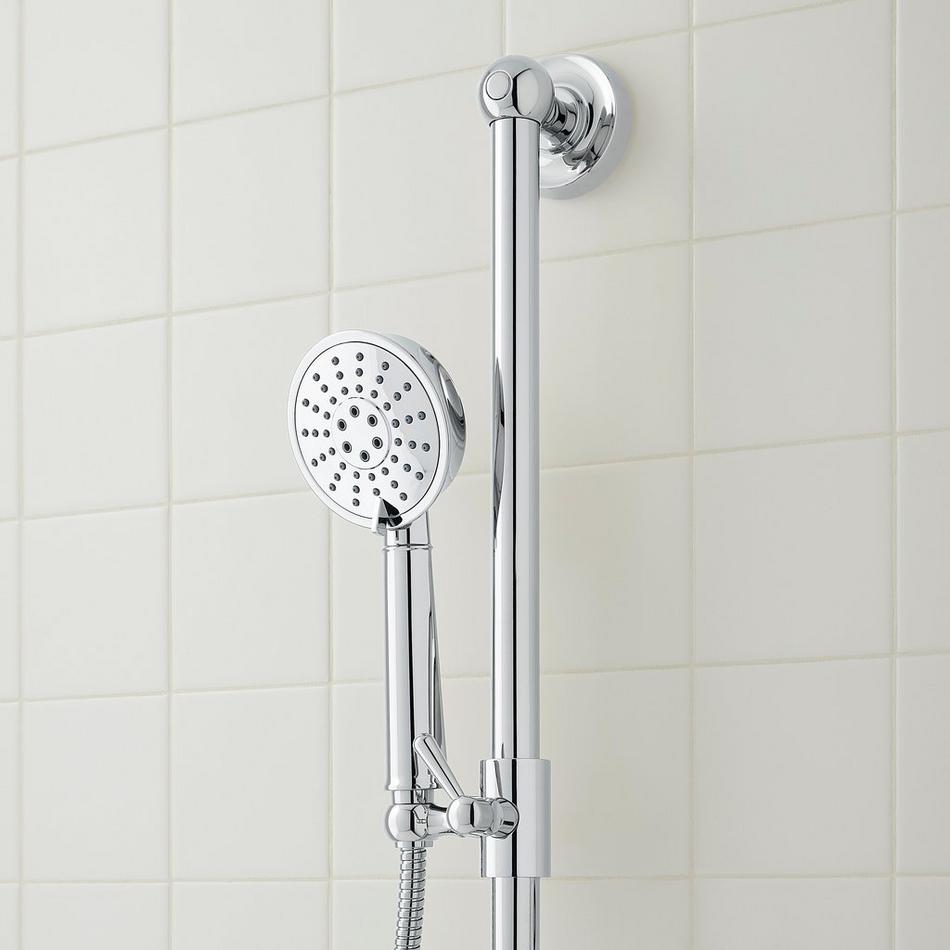

  • Hand Shower:
  • 3 function hand shower (full spray, massage spray, full & massage spray).
  • Easy-clean spray nozzles.
  • Factory installed backflow prevention check valve.
  • 60" Stretchable Metal Hand Shower Hose:
  • Double spiral constructed hose.
  • Swivel Water Supply Elbow and Bracket for Hand Shower :
  • 1/2" Female wall connection.
  • 1/2" Male hose connection.
  • Brass inlet/outlet, ABS body.

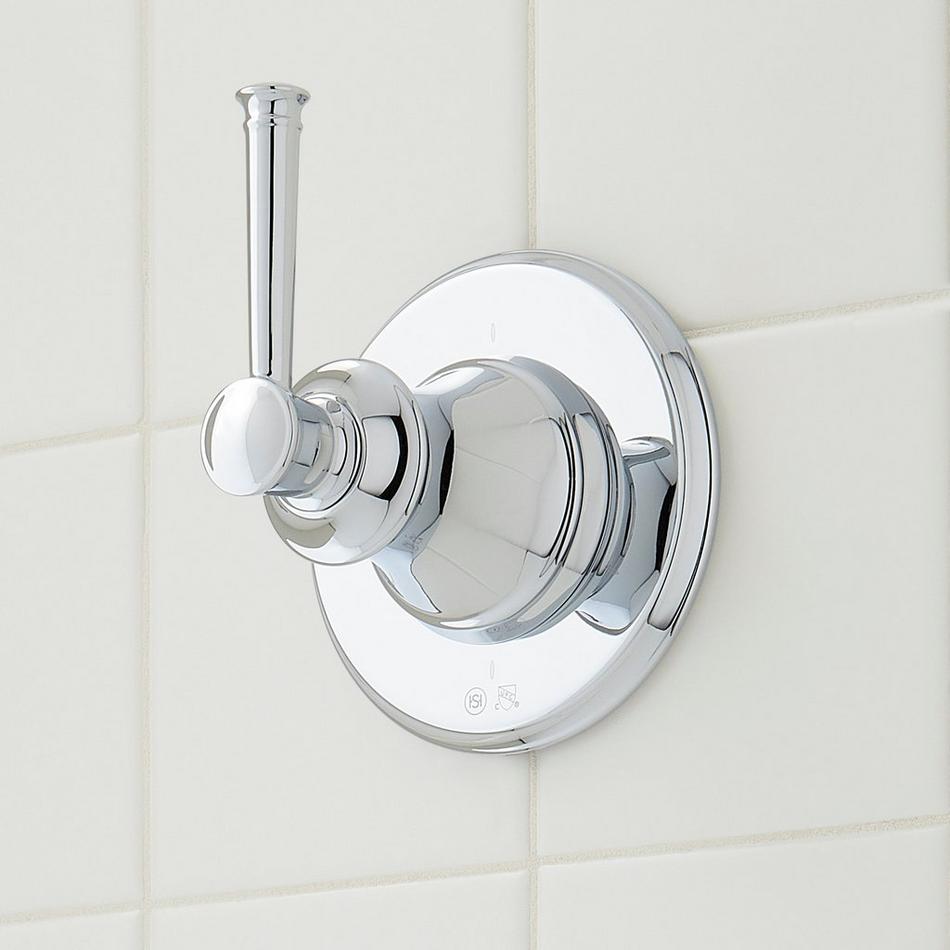

  • Beasley In-Wall Shower Diverter Trim :
  • Metal handle.
  • Metal Escutcheon.
  • 3-Way In-Wall Diverter Rough-In Valve - 3/4":
  • For installations only requiring 2 outlets, the 3rd outlet may be looped into one of the existing pipes.

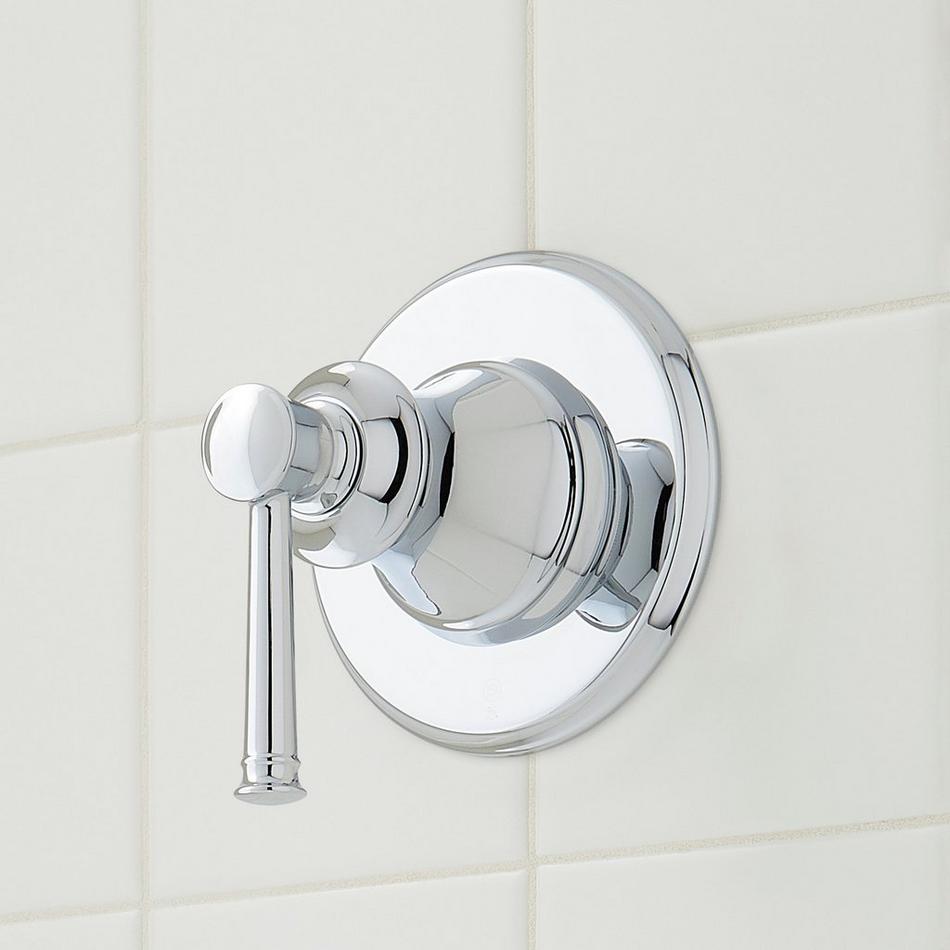

  • In-Wall Shower Volume Control Trim :
  • Overall Projection: 3-7/8".
  • Wall thickness range: 1" to 1-3/4".
  • Volume Control Rough-In Valve:
  • Intended for use with a thermostatic valve and trim.
  • Bronze valve body.
  • 30" Traditional Slide Bar for Hand Shower:
  • Metal bar and mounting posts. Adjustable angle for hand shower mount.

  • Features
    Product Type Shower Systems & Faucets
    Assembly Required Yes
    Body Sprays No
    Ceramic Disc Cartridges Yes
    Design Modern
    Diverter Included Yes
    Features Hand Shower Included
    Product Finish Chrome
    Flow Rate Rough-in Valve Capacity: 12.9 gpm (48.8 L/min) @ 80 psi
    Handle Type Lever
    Hand Shower Flow Rate 1.8 gpm (6.8 L/min) @ 80 psi
    Hand Shower Material ABS
    Installation Type Wall Mount
    Material Metal, ABS
    Mounting Hardware Included Yes
    Number of Shower Heads 2
    Shape Round
    Shower Arm Included Yes
    Shower Head Flow Rate 1.75 gpm (6.6 L/min) @ 80 psi
    Shower Head Installation Type Wall
    Shower Head Spray Rainfall
    Shower Head Swivel Yes
    Weight (lbs) 23.14
    Dimensions
    Hand Shower Hose Length 60"
    Hand Shower Length 9-7/16"
    Shower Arm Extension 12"
    Shower Arm Height 4-7/16"
    Shower Head Diameter 8"
    Shower Head IPS 1/2" NPSM
    Slide Bar Length 30"

    Signature products in real homes.
    Follow us on Instagram @signaturehw for more inspiration from our customers.

    Trilogie Alt 1 SIG485862
    SKU 485862 485862
    Collection Beasley
    Component SKUs SHBE9009CP;SH6006;SHRSA123CP (x2);SHRSB820RGCP (x2);SHHS4090GCP;SHH1010CP;SHWE2040CP;SHBE90052CP;SH6103;SHBE9007CP;SH6040;SHSB3010CP
    Available 0
