Beasley Thermostatic Shower System with 3 Body Sprays, Slide Bar and Hand Shower - Chrome

Shop the Beasley Collection
485868 SIG485868
3.8 out of 5 Customer Rating
Chrome Select an Option
Select an Option Chrome Select an Option
Select an Option Chrome Select an Option

As Selected

2,347 dollars 41 cents
Free Shipping
Details
You’ve reached the maximum quantity available

Shop In-Stock Selections

Estimate your Delivery Date

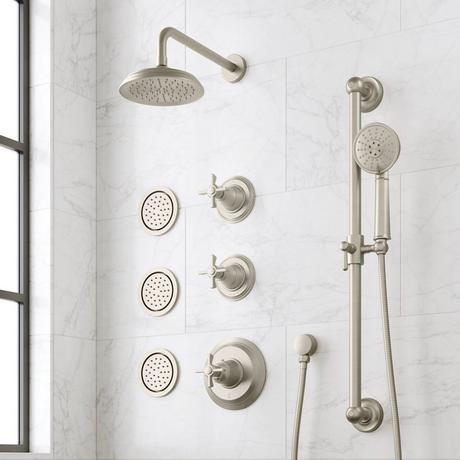

Experience spa-like luxury from your own home with the Beasley Thermostatic Shower System with 3 Body Sprays, Slide Bar & Hand Shower. Ensuring optimal rinsing and relaxation, the Beasley boasts three body sprays along with a convenient hand shower, which mounts to a slide bar for easily customizing its height to the user or task. To keep your desired water temperature maintained during your showers, the included thermostatic valve mixes hot and cold water supplies carefully throughout use. Promising lasting quality, choose from our selection of stunning, rust-resistant finishes to best complement your space.

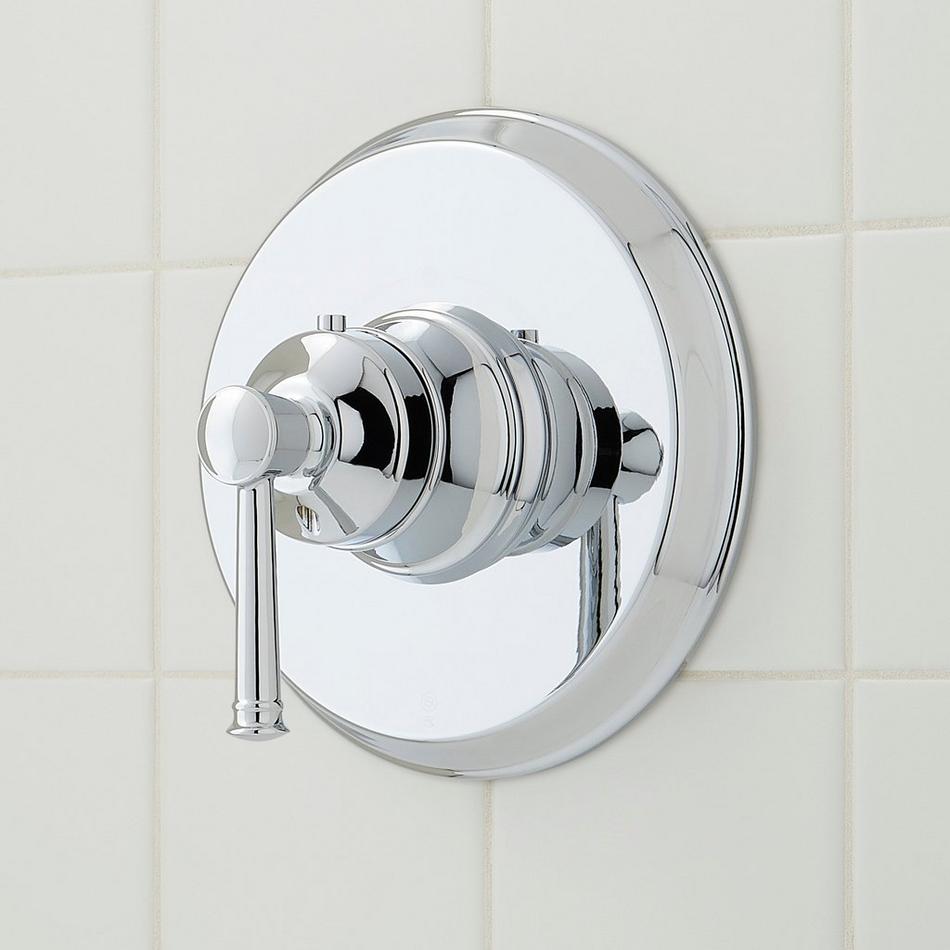

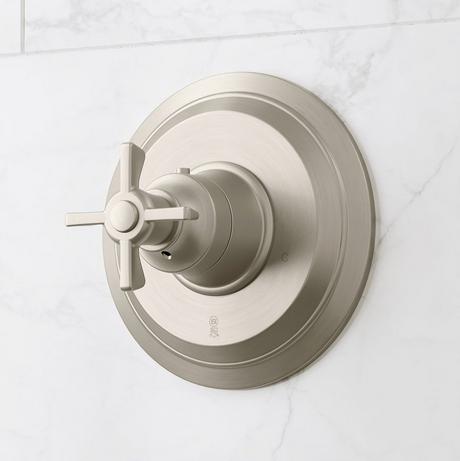

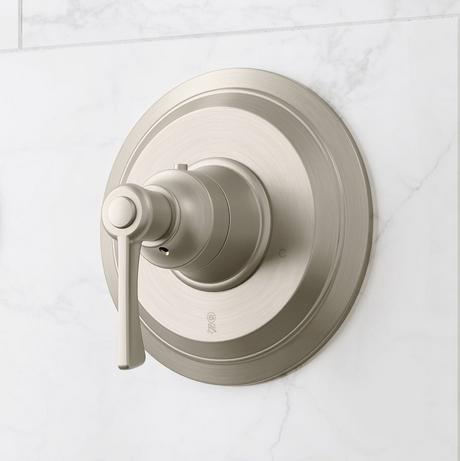

Beasley Thermostatic Shower Valve Trim:
  • Overall Projection: 7".
  • Temperature outlet factory preset to 104 degrees Fahrenheit.
  • Temperature can be easily adjusted up and down to user's comfort level.
  • Scald guard protection.
  • High temperature limit stop.
  • Thermostatic technology keeps shower temperature within 1 degree Celsius.
  • Wall thickness range: 1" to 1-3/4".
    • Thermostatic Rough-In Valve - 3/4" Connection:
  • Bronze valve body.
  • Factory-calibrated comfort setting at 104 degrees Fahrenheit.
  • Water inlet stops and check valve.
  • Thermostatic technology keeps shower temperature ±1 degree Celsius.
    • 12" Wall-Mount Rainfall Shower Arm:
  • Solid brass construction.
  • Escutcheon included.

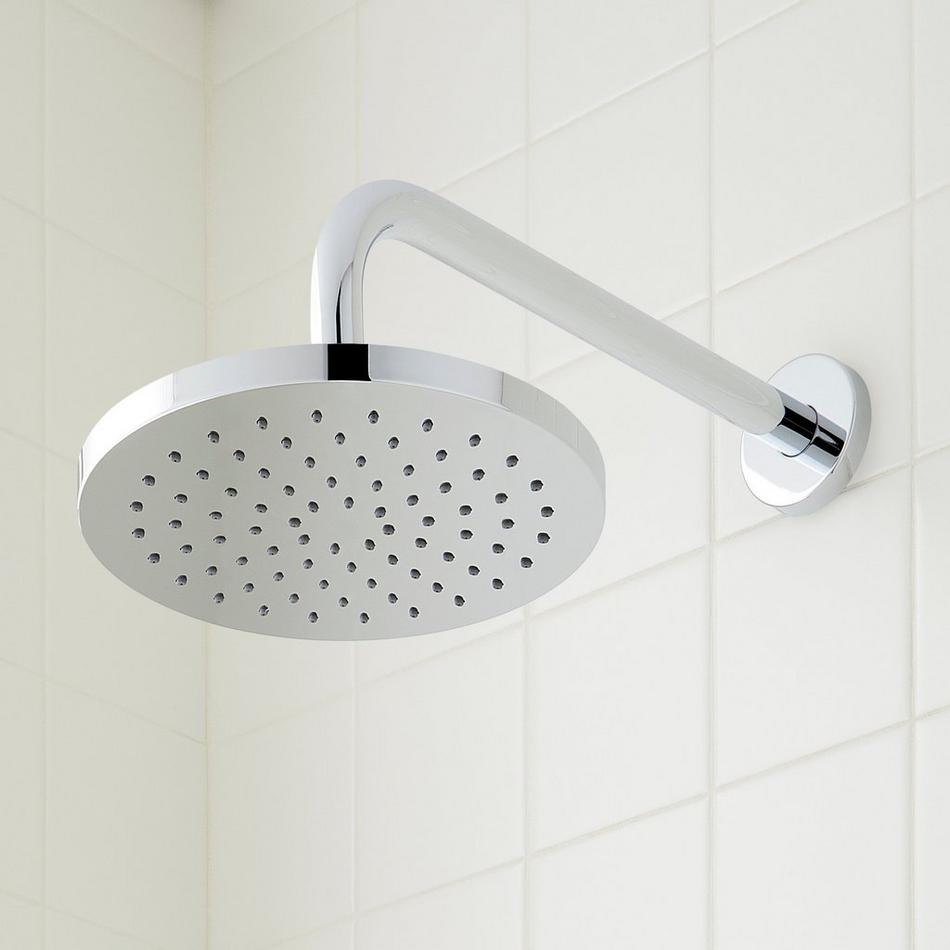

    • 8" Modern Round Rainfall Shower Head
  • Single function shower head (full spray).
  • Easy clean rubber nozzles.
  • Brass ball joint.

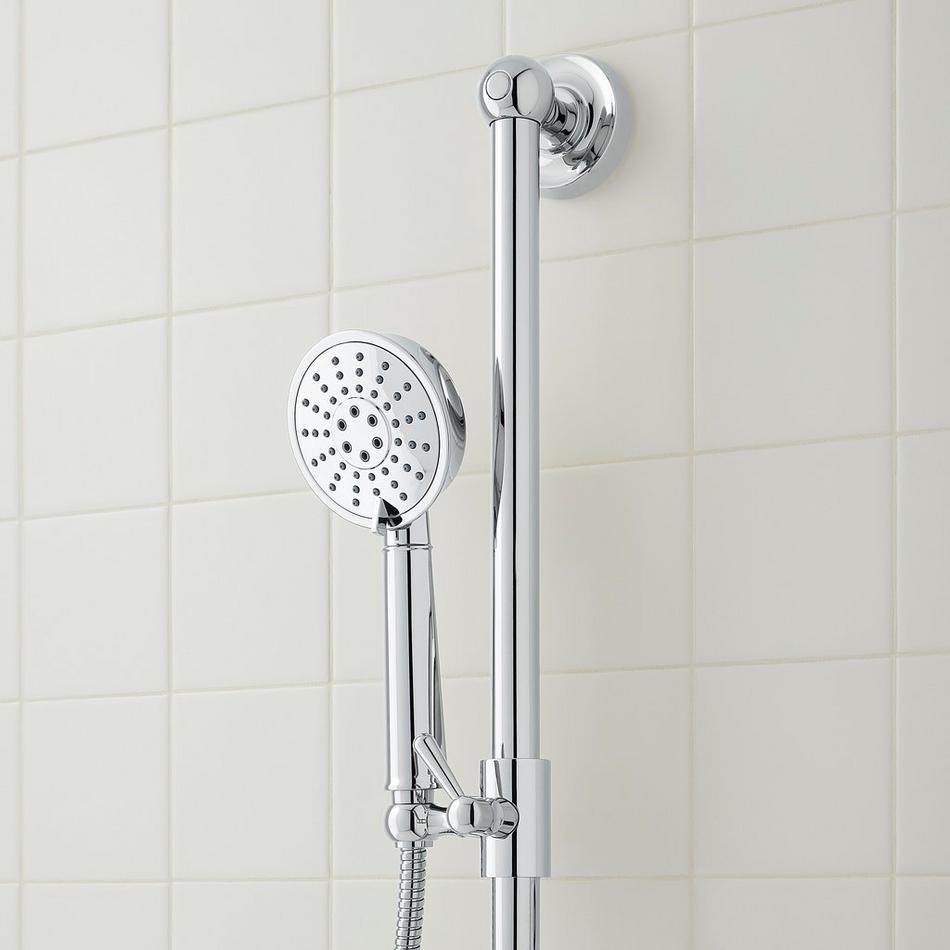

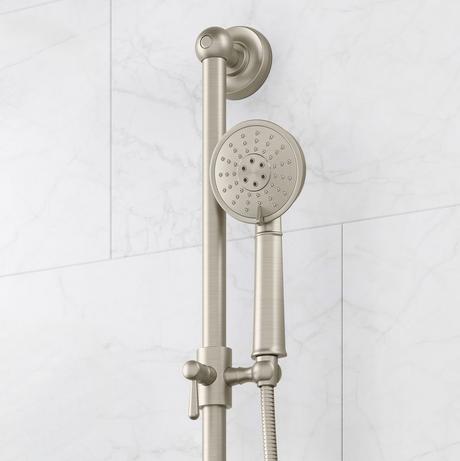

    • Pinecrest Hand Shower:
  • 3 function hand shower (full spray, massage spray, full & massage spray).
  • Easy-clean spray nozzles.
  • Factory installed backflow prevention check valve.
    • 60" Stretchable Metal Hand Shower Hose:
  • Double spiral constructed hose.
    • Swivel Water Supply Elbow and Bracket for Hand Shower :
  • 1/2" Female wall connection.
  • 1/2" Male hose connection.
  • Brass inlet/outlet, ABS body.

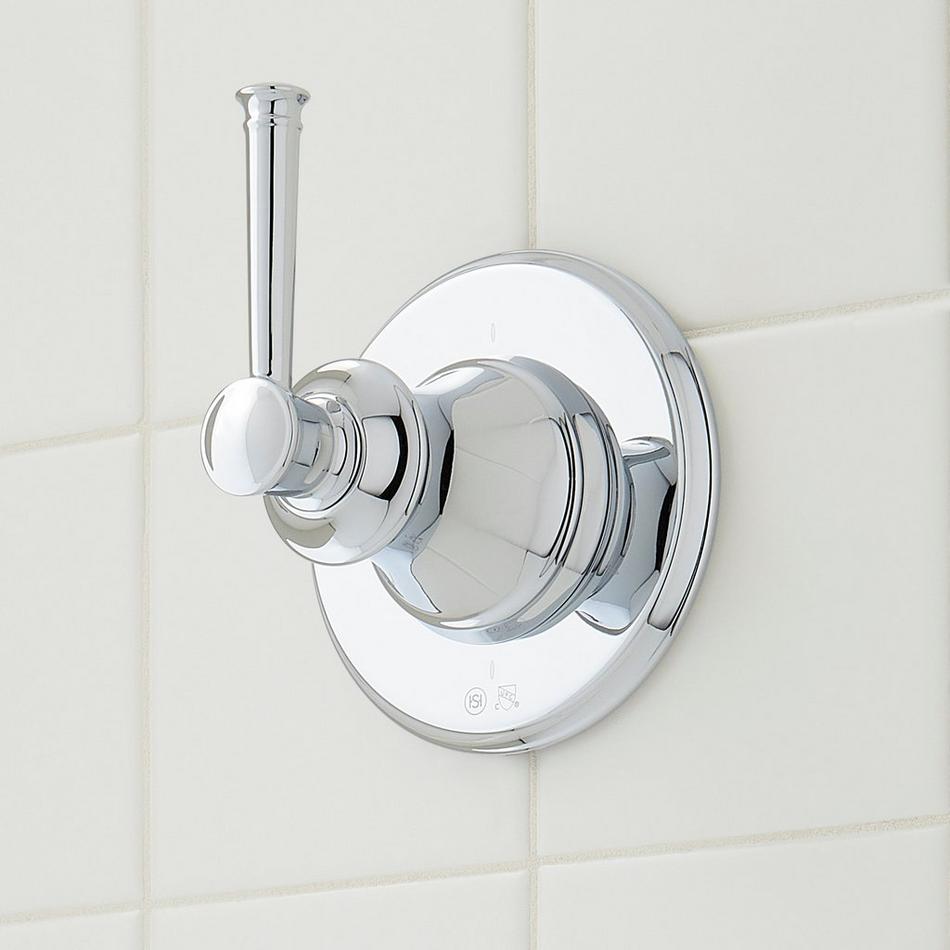

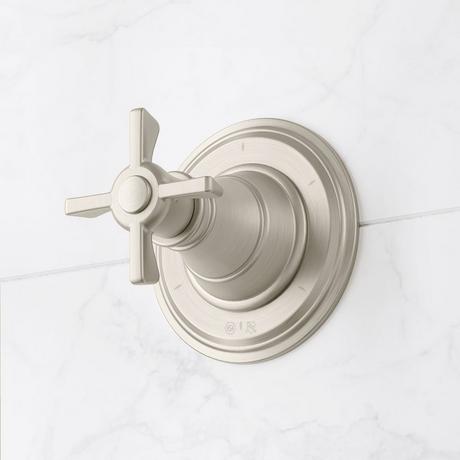

    • Beasley In-Wall Shower Diverter Trim:
  • Metal handle.
  • Metal Escutcheon.
    • 3-Way In-Wall Diverter Rough-In Valve - 3/4":
  • For installations only requiring 2 outlets, the 3rd outlet may be looped into one of the existing pipes.

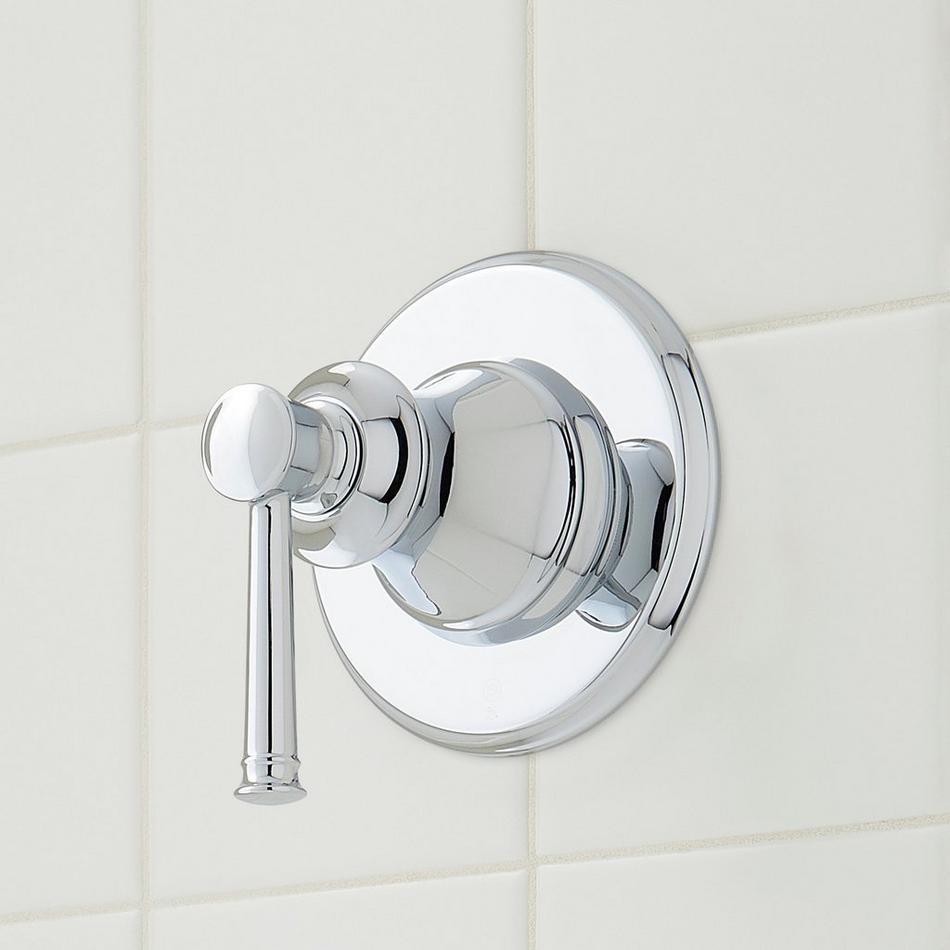

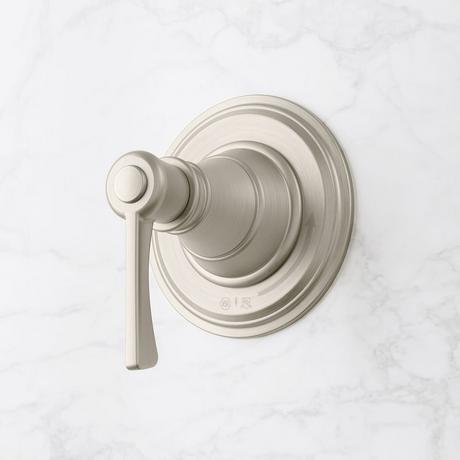

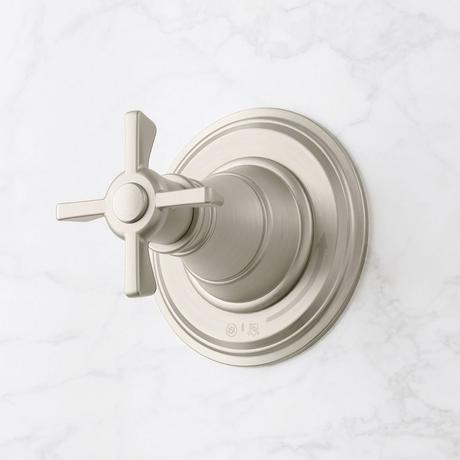

    • Beasley In-Wall Shower Volume Control Trim:
  • Overall Projection: 3-7/8".
  • Wall thickness range: 1" to 1-3/4".
    • Volume Control Rough-In Valve:
  • Intended for use with a thermostatic valve and trim.
  • Bronze valve body.
    • 30" Traditional Slide Bar for Hand Shower:
  • Metal bar and mounting posts.
  • Adjustable angle for hand shower mount.

    • Features

    Product Type
    Shower Systems & Faucets
    Assembly Required
    Yes

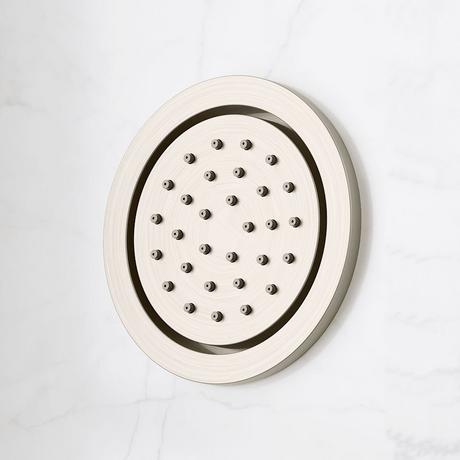

    Body Spray Flow Rate
    2.5 gpm (9.5 L/min) @ 80 psi

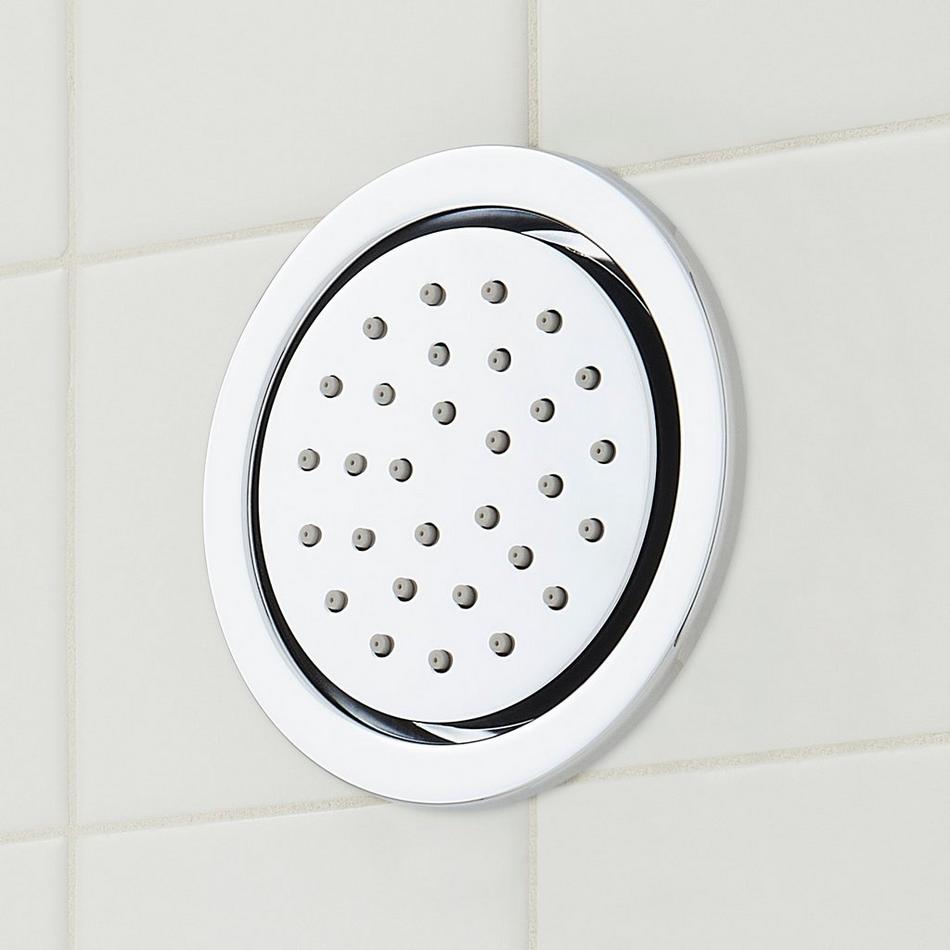

    Body Sprays
    Yes
    Ceramic Disc Cartridges
    Yes
    Design
    Traditional
    Diverter Included
    Yes
    Features
    Thermostatic
    Hand Shower Included
    Product Finish
    Chrome
    Flow Rate
    Rough-in Valve Capacity: 12.9 gpm (48.8 L/min) @ 80 psi
    Handle Type
    Lever
    Hand Shower Flow Rate
    1.8 gpm (6.8 L/min) @ 80 psi
    Hand Shower Material
    ABS
    Installation Type
    Wall Mount
    Material
    Metal, ABS
    Mounting Hardware Included
    Yes
    Number of Body Sprays
    3
    Number of Shower Heads
    1
    Shape
    Round
    Shower Arm Included
    Yes
    Shower Head Flow Rate
    1.75 gpm (6.6 L/min) @ 80 psi
    Shower Head Installation Type
    Wall
    Shower Head Spray
    Rainfall
    Shower Head Swivel
    Yes
    Weight (lbs)
    26.05

    Dimensions

    Hand Shower Hose Length
    60"
    Hand Shower Length
    9-7/16"
    Shower Arm Extension
    12"
    Shower Arm Height
    4-7/16"
    Shower Head Diameter
    8"
    Shower Head IPS
    1/2" NPSM
    Slide Bar Length
    30"
    Resources
    Specifications Installation Instructions Parts Breakdown
    Signature products in real homes.
    Follow us on Instagram @signaturehw for more inspiration from our customers.
    Trilogie Alt 1
    SIG485868
    SKU
    485868 485868
    Collection
    Beasley
    Component SKUs
    SHBE9009CP;SH6006;SHRSA123CP;SHRSB820RGCP;SHHS4090GCP;SHH1010CP;SHWE2040CP;SHBE90052CP;SH6103;SHBE9007CP;SH6040;SHSB3010CP;SHBS6010ECP (x3)
